Square-D / Schneider - Square D 2510FG1P 277 VAC 16 Amp 1 Hp 1-Pole NEMA 1 Surface Mount Non-Reversing Manual Starter

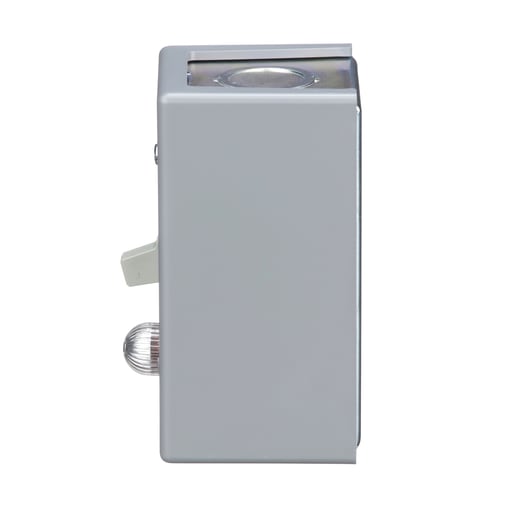

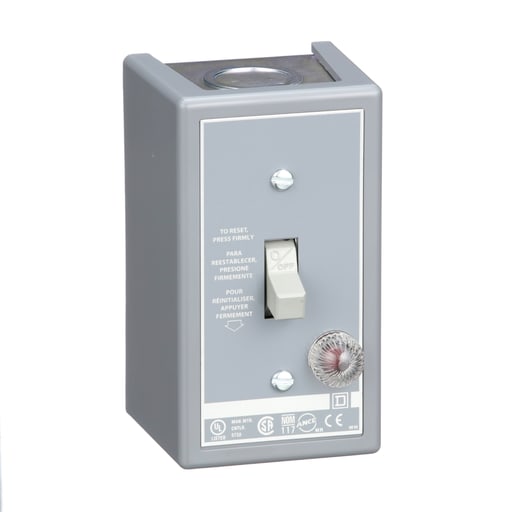

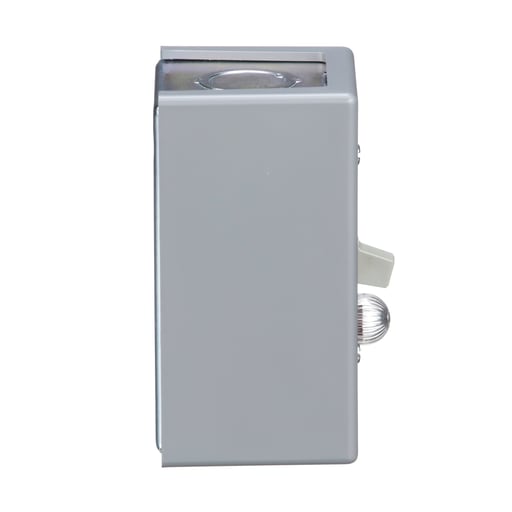

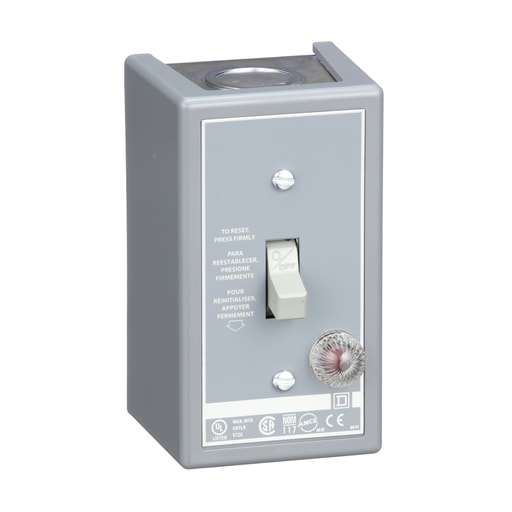

2510F fractional horsepower non-reversing manual starters provides manual On-Off control with overload protection for small motors. Designed for fractional single phase motors up to 1 HP. The toggle operator provides an easy manual On-Off control of small motors. Pilot light option is available. Melting alloy thermal units are used with this manual starter to sense over current conditions. Overload thermal unit is ordered separately to match motor data. This 1 pole nonreversing manual starter has a 16A current rating. Starter has a 1 HP rating at 115, 230, and 277 VAC. This NEMA 1 general purpose enclosure is a surface mounting enclosure. This manual starter is 4.25 inches tall, 2.44 inches wide and 2.75 inches deep. It weighs 0.79 lb. This device has a red pilot light indicator. Manual starter is UL listed and CSA certified. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: A.49; A.71; A.78; A.86; A.95; A1.02; A1.16; A1.25; A1.39; A1.54; A1.63; A1.75; A1.86; A1.99; A2.15; A2.31; A2.57; A2.81; A3.61; A3.95; A4.32; A4.79; A5.30; A5.78; A6.20; A6.99; A7.65; A8.38; A9.25; A9.85; A11.0; A11.9; A13.2; A14.1; A14.8; A16.2; A17.9; A19.8; A21.3; A25.2; A.59
