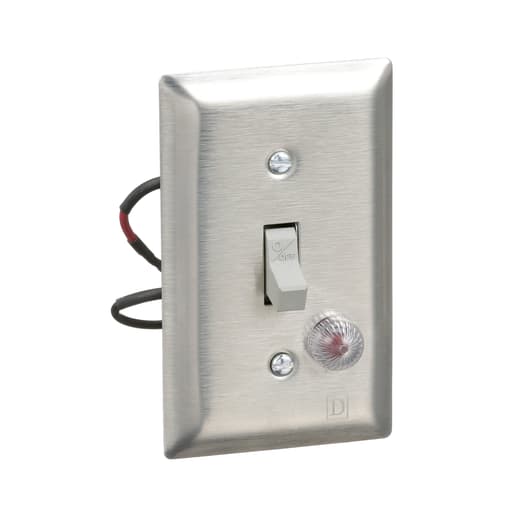

Square-D / Schneider - Square D 2510KS1A 600 VAC 230 VDC 30 Amp 3 Hp 2-Pole Flush Mount 1-Phase Non-Reversing Manual Switch

Essential specifications

12-Digit UPC - 785901554660
Amperage - 30A
Applications - PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY
Catalog Number - 2510KS1A
Country of Origin - Mexico

Packaging

1 ea

EAN

00785901554660

Part #

220050

Catalog #

2510KS1A

Commercial reference

2510KS1A

12-Digit UPC:

785901554660

Amperage:

30A

Applications:

PROVIDES MANUAL ON/OFF CONTROL OF SINGLE OR THREE PHASE AC MOTORS WHERE OVERLOAD PROTECTION IS NOT REQUIRED OR PROVIDED SEPARATELY

Catalog Number:

2510KS1A

Country of Origin:

Mexico

Current:

30 Amp

Depths:

2-1/2 Inch

ERP_productname:

SQD 2510KS1A MANUAL SWITCH 600VAC K+OPTIONS

Enclosure:

Not Rated

Family Brand Name:

Square D

Heights:

4-1/2 Inch

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Size:

2.5 in

Sub Brand:

Tc Connection:

Screw clamp terminals

Type:

Single Unit Manual Switch

Voltage:

600 Volt

Widths:

2.75 in

SoneparProductId:

SKU_US_26901217

Square D Type K Motor starting switches provide compact manual On-Off control of single or three phase motor or resistance heating loads up to 600 VAC, where overload protection is not required or provided separately. Flush mounted units can be mounted in a standard switch box or in a machine cavity without a box. Units are UL Listed, CSA Certified and CE Marked for global applications. Manual Switches. Designed for single or three phase AC motors. Suitable for use in three phase applications up to 20 HP. Provides easy manual .On-Off. control of small motors. For applications where overload protection is not required or is provided separately. Intended for industrial, commercial and residential applications. Can be easily installed. UL, CSA and CE approvals. This device is UL Listed and CSA certified.
