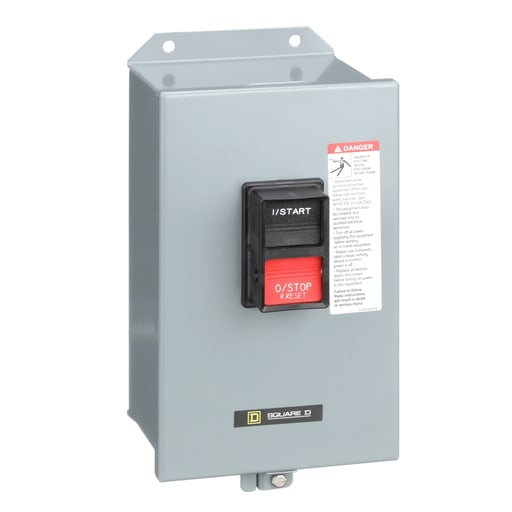

Square-D / Schneider - Square D 2510MBA2 600 VAC 18 Amp 5 Hp 3-Pole NEMA 12 Non-Reversing Manual Starter

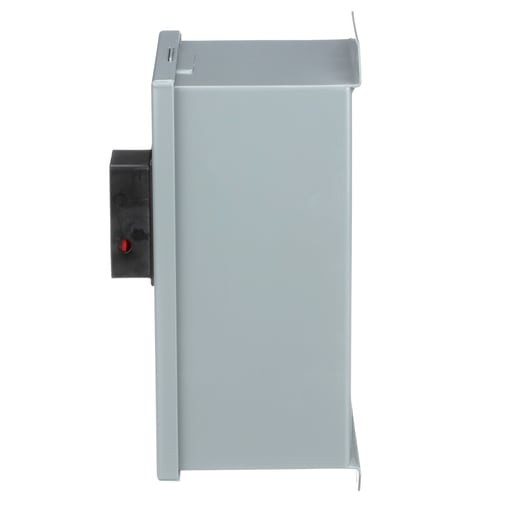

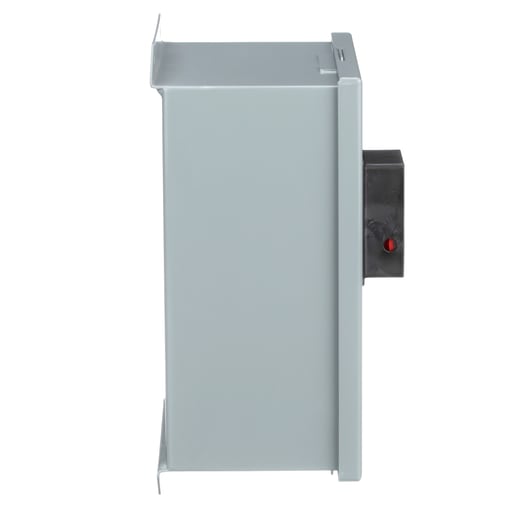

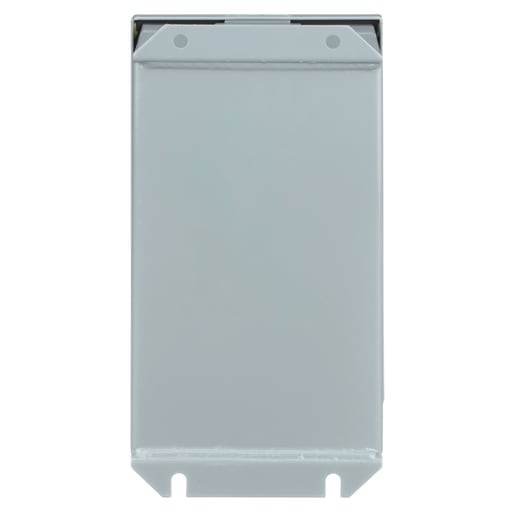

2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. Overload heater elements are ordered separately to match motor data. This NEMA Size M-0 three pole starter is rated for 3 HP at 200 to 230 VAC and 5 HP at 380 to 575 VAC three phase. Three melting alloy thermal units are used with this manual starter to sense over current conditions. The thermal units are ordered separately to match motor data. The pressure wire clamp terminals will accept 14 to 8 AWG copper wire. This starter has no pilot light indicator. A NEMA 12 dusttight and driptight industrial use enclosure is used to protect this integral horsepower manual starter. This is a painted sheet steel enclosure. Enclosure is 10.92 inches tall, 5.78 inches wide and 5.76 inches deep. 2510M integral horsepower starters are UL listed and CSA certified. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: B0.63; B0.71; B0.81; B0.92; B1.03; B1.16; B1.30; B1.45; B1.67; B1.88; B2.10; B2.40; B2.65; B3.00; B3.30; B3.70; B4.15; B4.85; B5.50; B6.25; B6.90; B7.70; B8.20; B9.10; B10.2; B11.5; B12.8; B14.0; B15.5; B17.5; B19.5
