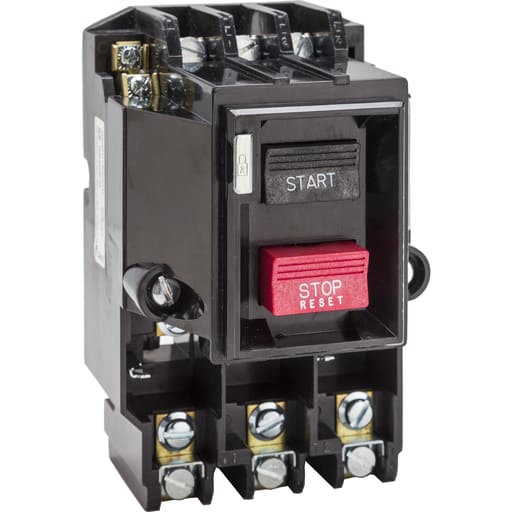

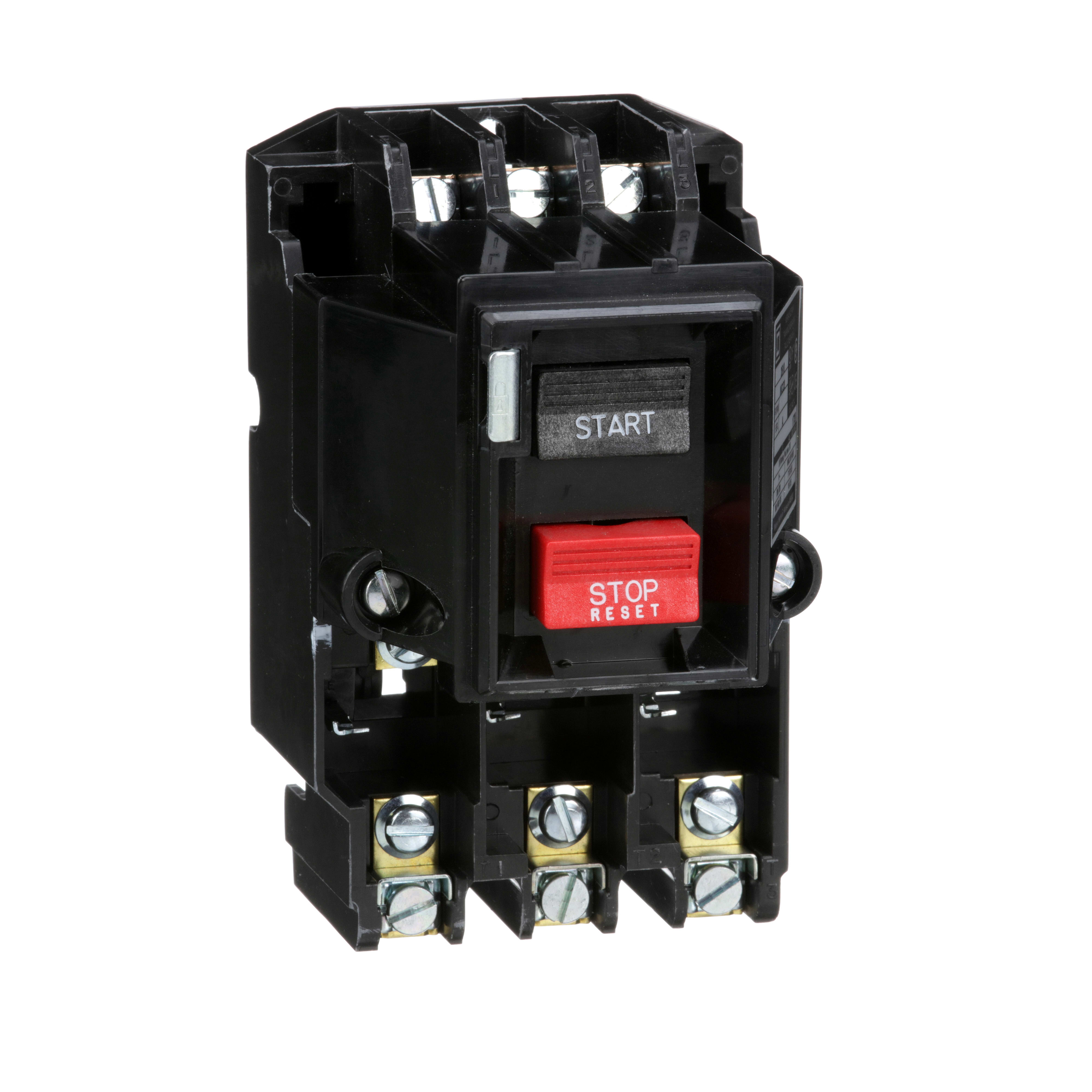

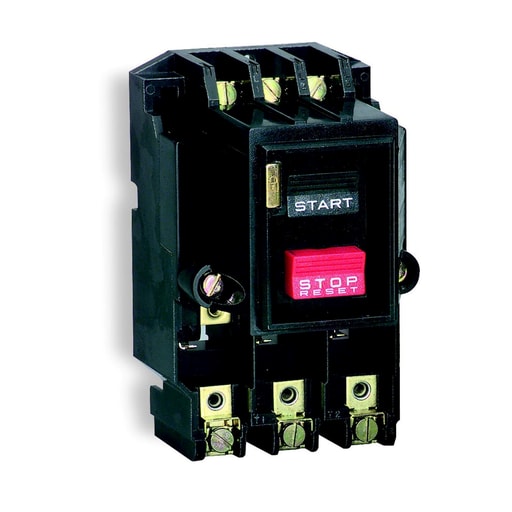

Square-D / Schneider - Square D 2510MCO1 230 VAC Manual Starter
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901792123
Amperage - 27A
Catalog Number - 2510MCO1
Country of Origin - Mexico
Depths - 4.03 Inch
Packaging
1 ea
EAN
00785901792123
Part #
148019
Catalog #
2510MCO1
Commercial reference
2510MCO1
12-Digit UPC:
785901792123
Amperage:
27A
Catalog Number:
2510MCO1
Country of Origin:
Mexico
Depths:
4.03 Inch
ERP_productname:
SQD 2510MCO1 MANUAL STARTER 230VAC
Enclosure:
NOT RATED (OPEN DEVICE)
Family Brand Name:
Square D
Heights:
5.72 Inch
NEMA Size:
M-1
Number of Poles:
2 Pole
Size:
M-1
Sub Brand:
M
Tc Connection:
PRESSURE WIRE CLAMP
Type:
NON-REVERSING MANUAL STARTER
Voltage:
600//250 VAC//VDC
Widths:
3.5 in
SoneparProductId:
SKU_US_29803334
Square D Type M & T integral horsepower manual motor starters provide overload protection and On-Off control for small AC motors. Starters can be locked in the Off/Stop position to prevent inadvertent operation. Pilot lights and auxiliary contacts are field addable. Overload heater elements are ordered separately to match motor data. Starters are UL Recognized, CSA Certified and CE Marked for global applications. Integral Horsepower Manual Motor Starters. Designed for single or poly phase motors up to 10 HP. Designed for DC motors up to 2 HP. Provides easy manual .On-Off. control of small motors. Available with pushbutton or toggle operators. Provides reliable melting alloy overload protection for motors. Intended for industrial and commercial applications. Pilot lights and auxiliary contacts are available. Enclosed or open versions to suit most application environments. UL, CSA and CE approvals.
