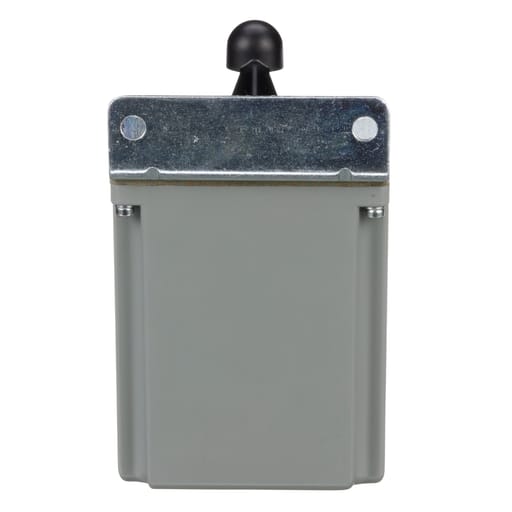

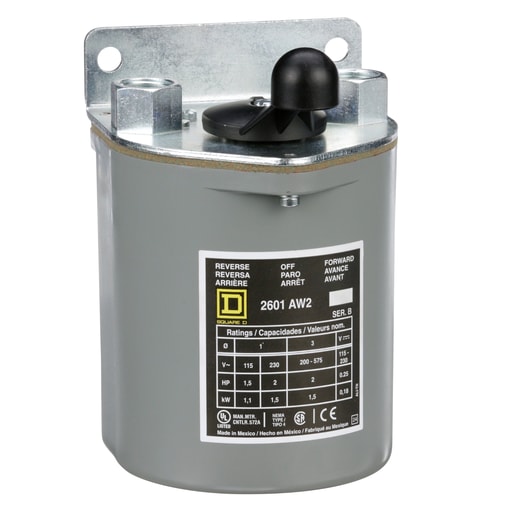

Square-D / Schneider - Square D 2601AW2 600 VAC 2 Hp NEMA 4 Reversing Drum Switch

Essential specifications

12-Digit UPC - 785901784432
Actuator - STANDARD ONE-PIECE
Applications - DESIGNED TO START AND REVERSE MOTORS BY CONNECTING THEM DIRECTLY ACROSS-THE-LINE.
Catalog Number - 2601AW2
Country of Origin - Mexico

Packaging

1 ea

EAN

00785901784432

Part #

147374

Catalog #

2601AW2

Commercial reference

2601AW2

12-Digit UPC:

785901784432

Actuator:

STANDARD ONE-PIECE

Applications:

DESIGNED TO START AND REVERSE MOTORS BY CONNECTING THEM DIRECTLY ACROSS-THE-LINE.

Catalog Number:

2601AW2

Country of Origin:

Mexico

ERP_productname:

SQD 2601AW2 REV DRUM SW NEMA-4

Enclosure:

Enclosure Rating:

Family Brand Name:

Square D

Horsepower:

1.5 hp 115 V AC, 1 phase;2 hp 230 V AC, 1 phase;2 hp 200 V AC, 3 phase;2 hp 230 V AC, 3 phase;2 hp 460 V AC, 3 phase;2 hp 575 V AC, 3 phase;0.25 hp 115 V DC;0.25 hp 230 V DC

NEMA Size:

Number of Poles:

3 Pole

Tc Connection:

Screw-clamp terminals

Type:

Reversing Drum Switch

Voltage:

600 Volt

SoneparProductId:

SKU_US_70004613

2601 reversing drum switches are designed to start and reverse motors by connecting them directly across the line. The devices can be used with squirrel cage and single phase motors designed for reversing service. Can be used with AC or DC motors. Drum switches are field convertible from maintained to momentary operation. A variety of enclosures are available. This device has a NEMA 4 watertight enclosure. Drum switches are UL listed and CSA certified for global applications. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
