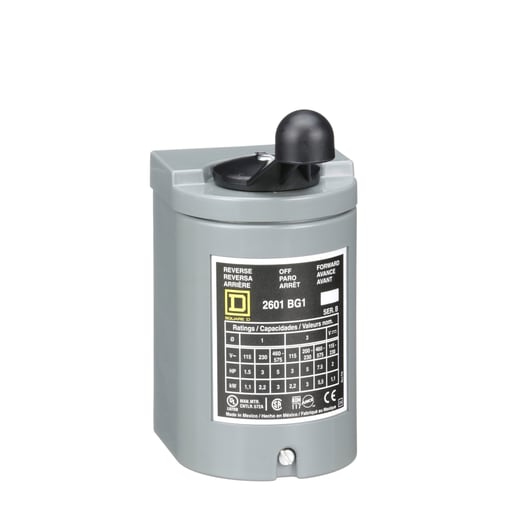

Square-D / Schneider - Square D 2601BG1 600 VAC 7.5 Hp NEMA 1 Reversing Drum Switch

12-Digit UPC:

785901555438

Actuator:

STANDARD ONE-PIECE

Applications:

DESIGNED TO START AND REVERSE MOTORS BY CONNECTING THEM DIRECTLY ACROSS-THE-LINE.

Catalog Number:

2601BG1

Country of Origin:

Mexico

Depths:

4.61 Inch

ERP_productname:

SQD 3 YEAR POWERLOGIC RENEWAL

Enclosure:

1

Enclosure Rating:

1

Family Brand Name:

Square D

Heights:

5.38 Inch

Horsepower:

1.5 hp 115 V AC, 1 phase;3 hp 230 V AC, 1 phase;5 hp 460 V AC, 1 phase;5 hp 575 V AC, 1 phase;5 hp 200 V AC, 3 phase;5 hp 230 V AC, 3 phase;7.5 hp 460 V AC, 3 phase;7.5 hp 575 V AC, 3 phase;2 hp 115 V DC;2 hp 230 V DC

NEMA Size:

1

Number of Poles:

3 Pole

Size:

4.61 in

Tc Connection:

Screw-clamp terminals

Type:

Reversing Drum Switch

Voltage:

250 Volt

Widths:

2.68 in
