Square-D / Schneider - Square D 2601BW1 600 VAC 7.5 Hp NEMA 4 Reversing Drum Switch

Essential specifications

12-Digit UPC - 785901784449
Actuator - STANDARD ONE-PIECE
Applications - DESIGNED TO START AND REVERSE MOTORS BY CONNECTING THEM DIRECTLY ACROSS-THE-LINE.
Catalog Number - 2601BW1
Country of Origin - Mexico

Packaging

1 ea

EAN

00785901784449

Part #

346950

Catalog #

2601BW1

Commercial reference

2601BW1

12-Digit UPC:

785901784449

Actuator:

STANDARD ONE-PIECE

Applications:

DESIGNED TO START AND REVERSE MOTORS BY CONNECTING THEM DIRECTLY ACROSS-THE-LINE.

Catalog Number:

2601BW1

Country of Origin:

Mexico

Depths:

5-1/2 Inch

ERP_productname:

SQD 2601BW1 SWITCH, REVERSING DRUM, 5HP AT 575VAC SINGLE PHASE, 7.5HP AT 575VAC POLYPHASE, HANDLE OPERATED, NEMA 4 ENCLOSURE

Enclosure:

Enclosure Rating:

Family Brand Name:

Square D

Heights:

6.89 Inch

NEMA Size:

Number of Poles:

3 Pole

Size:

5.50 in

Tc Connection:

Screw-clamp terminals

Type:

Reversing Drum Switch

Voltage:

250 Volt

Widths:

4.40 in

SoneparProductId:

SKU_US_25682257

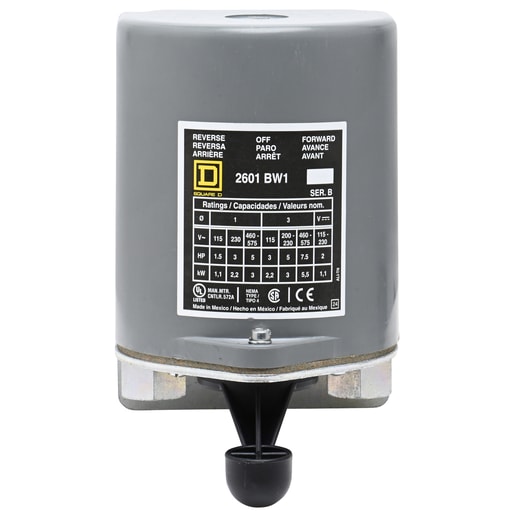

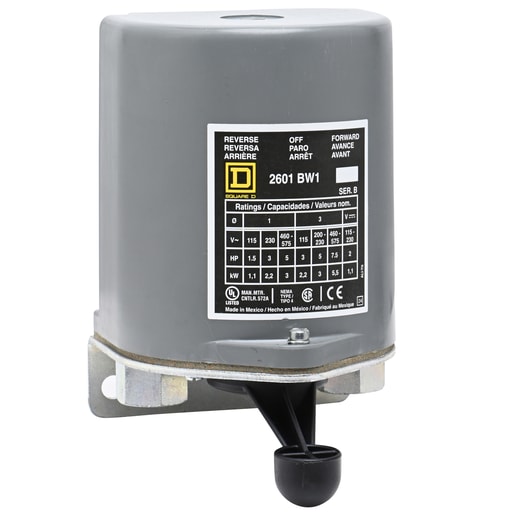

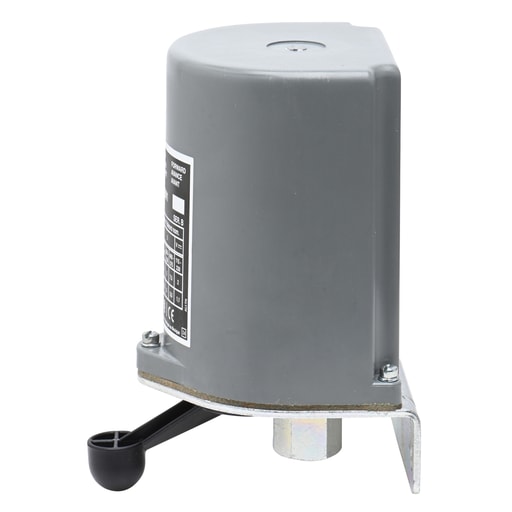

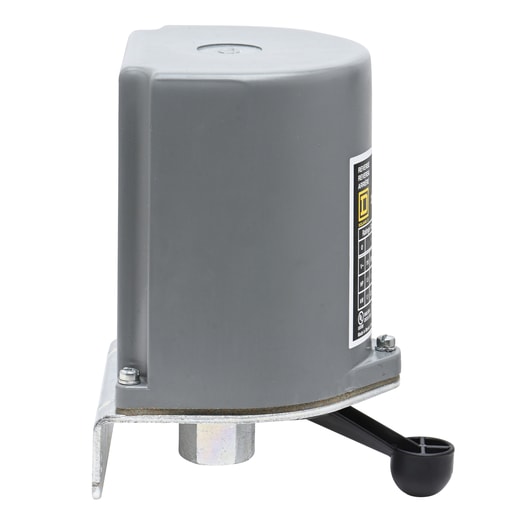

2601 reversing drum switches are designed to starting and reversing motors by connecting them directly across the line. The devices can be used with squirrel cage and single-phase motors designed for reversing service. Can be used with AC or DC motors. Drum switches are field convertible from maintained to momentary operation. A variety of enclosures are available. A NEMA 4 watertight and dusttight enclosure is used to protect this switch. Enclosure is 6.89 inches tall, 4.40 inches wide and 5.50 inches deep. Drum switches are UL listed and CSA certified. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
