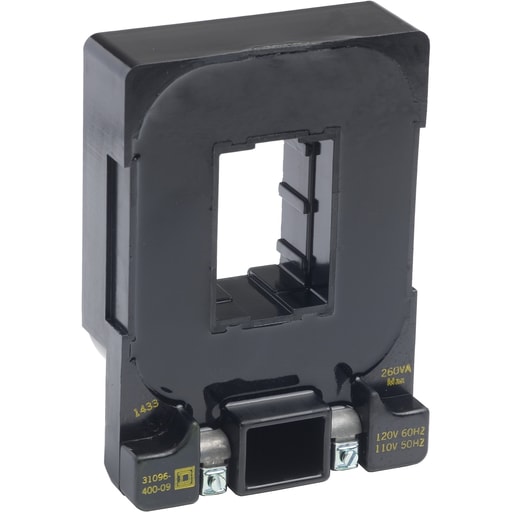

Square-D / Schneider - Square D 3109640009 120 VAC 60Hz Contactor Starter Coil
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901326892
Catalog Number - 3109640009
Coil Voltage - 120@60Hz/110@50Hz VAC
Country of Origin - USA
Depths - 45.3 mm
Packaging
1 ea
EAN
00785901326892
Part #
273714
Catalog #
3109640009
Commercial reference
3109640009
12-Digit UPC:
785901326892
Catalog Number:
3109640009
Coil Voltage:
120@60Hz/110@50Hz VAC
Country of Origin:
USA
Depths:
45.3 mm
ERP_productname:
SQD 3109640009 NEMA MOTOR STARTER, TYPE S, REPLACEMENT COIL, SERIES A, 110/120VAC 50/60HZ, NEMA SIZE 5 STARTER AND 8903SX LIGHTING
Family Brand Name:
Square D
Heights:
140.5 mm
NEMA Size:
5
Size:
1.78 in
Type:
Coil
Voltage:
110 Volt
Widths:
101.2 mm
SoneparProductId:
SKU_US_26348310
The coil can be easily replaced in a Type S contactor or starter. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor or starter if the coil were to fail. This coil is used in an 8502SG Series A contactor, an 8536SG Series A starter or an 8903SX Series A lighting contactor. The coil is rated for 110/120 VAC 50/60 Hz. The inrush power of this coil is 2970 VA. It has an average sealed consumption of 212 VA. This coil has a height of 140.5 mm, a width of 101.2 mm. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
