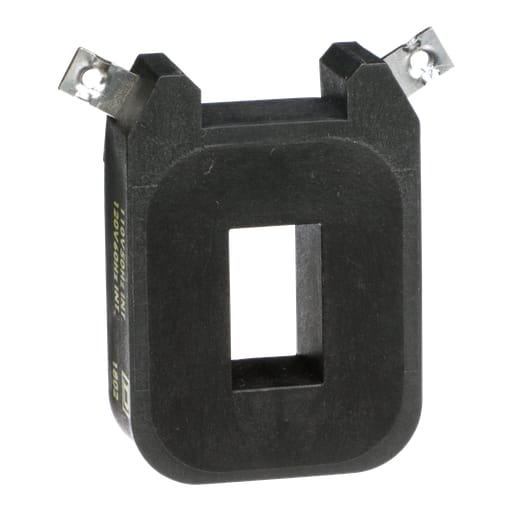

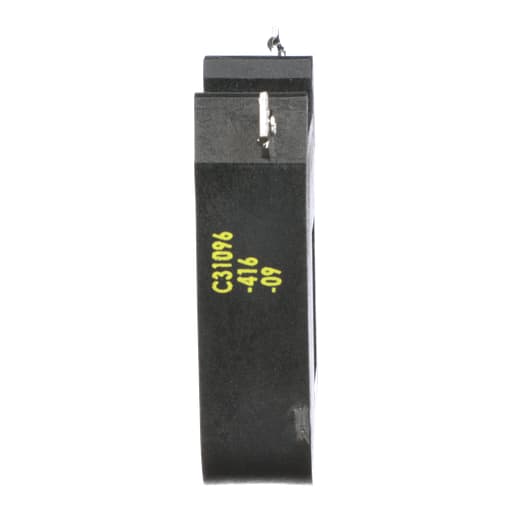

Square-D / Schneider - Square D 3109641609 110 to 115/120 VAC 100 Amp 50/60 Hz 550 VA Lighting Contactor AC Coil

The coil can be easily replaced on an 8903 lighting contactor. By changing out the unlatch coil, the contactor can be used in different control circuit voltage applications. This will also save the cost of a whole new lighting contactor if the coil were to fail. This unlatch coil is used with 8903 SQ, SV, SX, SY and SZ lighting contactors. The coil is rated for 110/120 VAC 50/60 Hz. The inrush power of this coil is 550 VA This coil has a height of 64 mm, a width of 59 mm and a depth of 17 mm. Coil is fully encapsulated to protect it. Coil has screw clamp connections.
