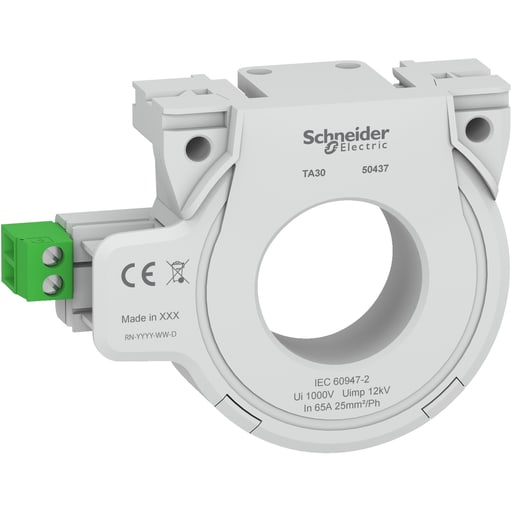

Square-D / Schneider - Square D 50437 Closed Toroid A Type

Essential specifications

12-Digit UPC - 303430504378
Amperage - 65 Amp
Applications - Equipment monitoring and control
Catalog Number - 50437
Country of Origin - France

Packaging

1 ea

EAN

03303430504375

Part #

226330

Catalog #

50437

Commercial reference

50437

12-Digit UPC:

303430504378

Amperage:

65 Amp

Applications:

Equipment monitoring and control

Catalog Number:

50437

Country of Origin:

France

Depths:

29 mm

ERP_productname:

SQD 50437 TOROID SENSOR TA30 T-A 30 MM (1.2 IN)

Enclosure:

IP30, IP20 (TERMINALS)

Family Brand Name:

Schneider Electric

Heights:

82 mm

Length:

1.14 Inch

Mounting Type:

Clip-on DIN Rail),Clip-on Vigirex Relay),Fixed Plain Backplate),Fixed Profiled Sheet Metal),Fixed Slotted Backplate)

Sub Brand:

TA30

Tc Connection:

TUNNEL TYPE TERMINALS : >= 0.22 MMA.

Type:

A type closed toroid;Earth leakage current sensor

Voltage:

1k Volt

Widths:

60 mm

SoneparProductId:

SKU_US_29260548

This toroid is dedicated to Vigilohm Insulation Fault locators, and to VigiPacT type A residual current protection and monitoring relays. It allows the monitoring of the injected component from Vigilohm Insulation Monitor, and the measurement of a current rating up to 65A for VigiPacT monitoring and protection relays. The transformer ratio is 1/1000. The inner diameter of the toroid is 30 millimeters and the weight is 0.120kg. The cables must be centered within the toroid and the diameter represented by all these cables should not exceed 15 millimeters. The maximum cross section per phase (R, S, T, N) is 25mm. for a copper conductor. Prop 65: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 56270; 56273; 56272; 56055
