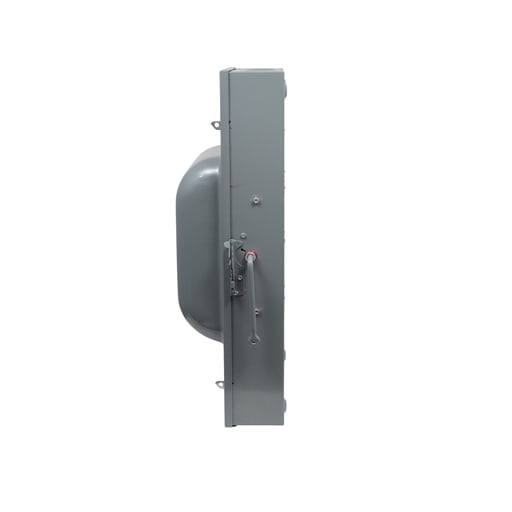

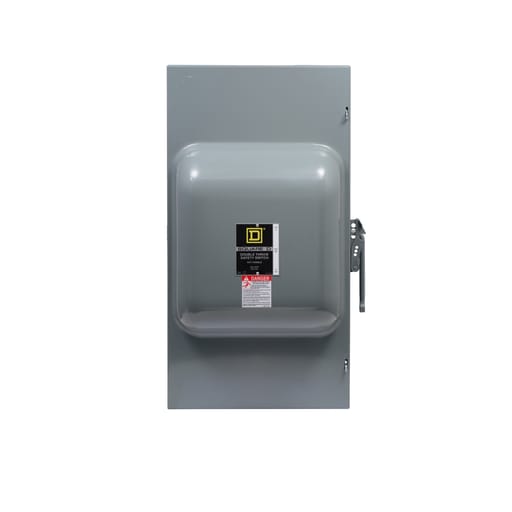

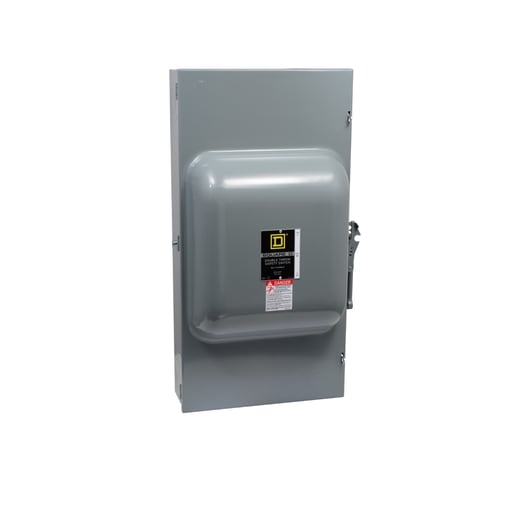

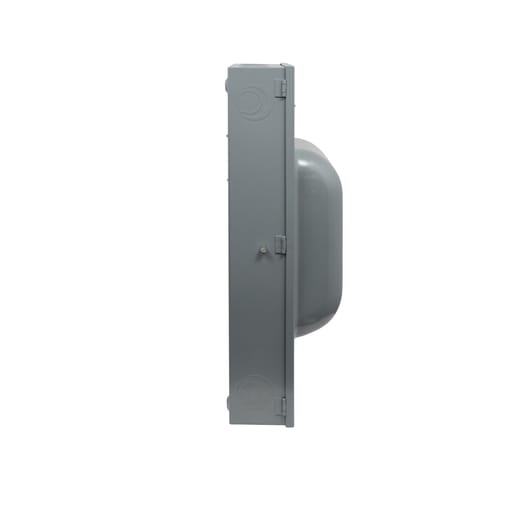

Square-D / Schneider - Square D 82254N 240 VAC 200 Amp 2-Pole Steel NEMA 1 Non-Fusible Double Throw Safety Switch

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901017417

  • Amperage - 200 Amp

  • Catalog Number - 82254N

  • Conductor Size - 6 AWG-300 kcmil

  • Country of Origin - USA

Packaging

  • 1 ea

EAN

00785901017417

Part #

386254

Catalog #

82254N

Commercial reference

82254N

12-Digit UPC:

785901017417

Amperage:

200 Amp

Catalog Number:

82254N

Conductor Size:

6 AWG-300 kcmil

Country of Origin:

USA

Current:

200 Amp

Depths:

9-3/4 Inch

ERP_productname:

SQD 82254N SAFETY SWITCH, DOUBLE THROW, NON FUSIBLE, 200A, 240V, 2 POLE, 15HP, NEMA 1

Enclosure:

1

Enclosure Material:

Stainless Steel

Enclosure Rating:

1

Family Brand Name:

Square D

Heights:

30.88 Inch

Material:

Steel

Mounting Type:

Surface

NEMA Size:

1

Number of Poles:

2 Pole

Short Circuit Current:

10 kA

Short Circuit Current Ratng:

10 kA

Size:

9.75 in

Type:

Non-fusible disconnect switch;Double Throw Safety Switch

Voltage:

240 Volt

Widths:

19.63 in

Wire Size:

AWG 6...300 kcmil copper or aluminium

SoneparProductId:

SKU_US_26620324

The Square D™ by Schneider Electric brand Double Throw Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Double throw safety switches are designed for Residential, light commercial, and industrial installations. Double throw safety switches transfer a load from one power source to another power source. 30A-100A F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require and switches can be field-converted to transfer a power source from one load to another. These switches come in fusible or non-fusible configurations and my be padlocked in the ON-OFF positions. This Double Throw Safety Switch has a rated current of 200A. This non-fusible disconnect switch is surface mounted. This Double Throw Safety Switch comply's to UL listed certifications. Dimensions for this product are 19.63 in (H),30.88 in (W),9.75 in (D). This procuct comes with an 18 month warranty. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
