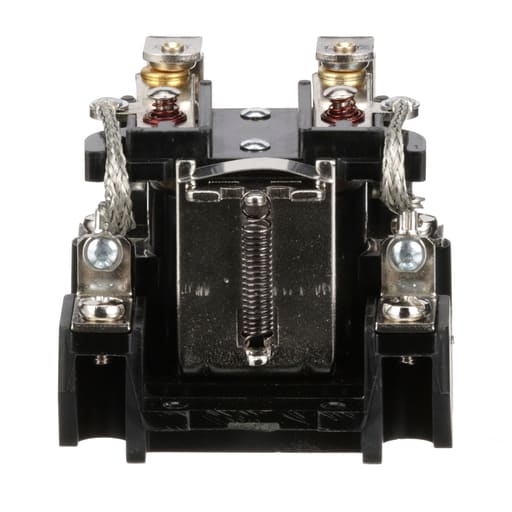

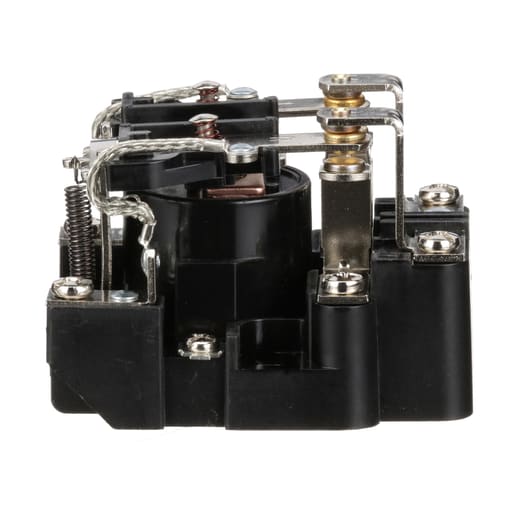

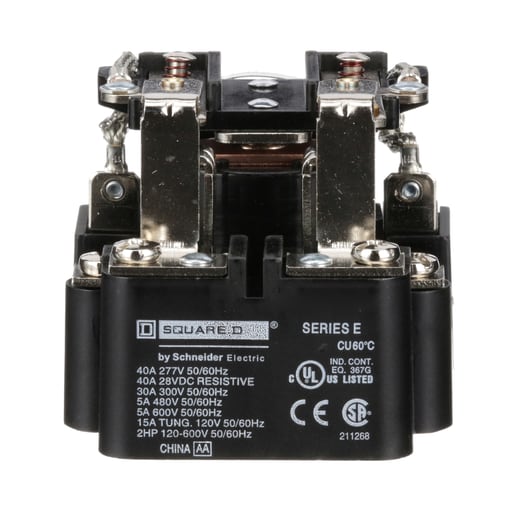

Square-D / Schneider - Square D 8501CDPDT 120 Volt Power Relay
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901559160
Catalog Number - 8501CDPDT
Country of Origin - Mexico
Depths - 2.31 Inch
ERP_productname - SQD 8501CDPDT OPEN POWER RELAY 120VAC DPDT
Packaging
1 ea
EAN
00785901559160
Part #
124175
Catalog #
8501CDPDT
Commercial reference
8501CDPDT
12-Digit UPC:
785901559160
Catalog Number:
8501CDPDT
Country of Origin:
Mexico
Depths:
2.31 Inch
ERP_productname:
SQD 8501CDPDT OPEN POWER RELAY 120VAC DPDT
Family Brand Name:
Schneider Electric
Heights:
3.12 Inch
Number of Phases:
1 Phase
Sub Brand:
Type C
Type:
Power relay
Widths:
2.5 in
SoneparProductId:
SKU_US_25626805
This range of relays is used in electric heater, pumping, conveyor and material handling applications. These relays have a durable open frame construction. 8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a DPDT contact configuration with two normally open and two normally closed contacts. Designed with heavy duty contacts that are rated for single phase 1.5 HP motors at 120 VAC, 230 VAC or 600 VAC. It also has a 30 A resistive rating at 300 VAC or 5 A resistive rating at 600 VAC. A variety of coil voltages are available. This relay has a 120 VAC nonreplaceable coil. Relay is 3.12 inches tall, 2.50 inches wide and 2.31 inches deep. 8501C power relays are UL listed and CSA certified. Compatible Products: 9991UE1
