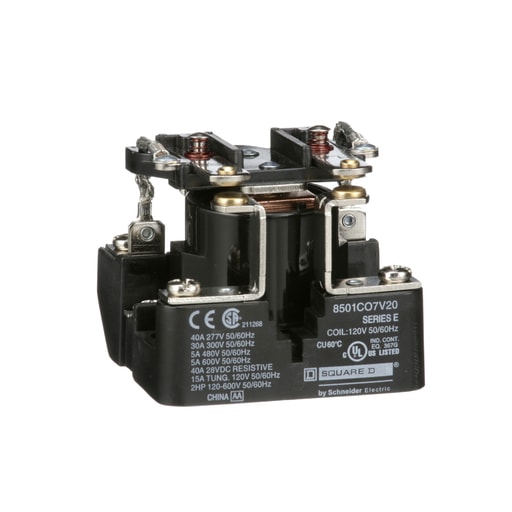

Square-D / Schneider - Square D 8501CDPST 40 Amp 120 Volt Coil DPST Power Relay with 8501CO7V20
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901559337
Catalog Number - 8501CDPST
Country of Origin - Mexico
Depths - 2-1/4 Inch
ERP_productname - SQD 8501CDPST OPEN POWER RELAY 120VAC, DPST-NO
Packaging
1 ea
EAN
00785901559337
Part #
196425
Catalog #
8501CDPST
Commercial reference
8501CDPST
12-Digit UPC:
785901559337
Catalog Number:
8501CDPST
Country of Origin:
Mexico
Depths:
2-1/4 Inch
ERP_productname:
SQD 8501CDPST OPEN POWER RELAY 120VAC, DPST-NO
Family Brand Name:
Schneider Electric
Heights:
2.43 Inch
Number of Phases:
1 Phase
Sub Brand:
Type C
Type:
Power relay
Widths:
2.5 in
SoneparProductId:
SKU_US_25626514
8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a DPST contact configuration with two normally open and no normally closed contact. A variety of coil voltages are available. This relay has a 120 VAC nonreplaceable coil. Designed with heavy duty contacts that are rated for single phase 1.5 HP motors at 120 VAC, 230 VAC or 600 VAC. It also has a 30 A resistive rating at 300 VAC or 5 A resistive rating at 600 VAC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications. Compatible Products: 9991UE1
