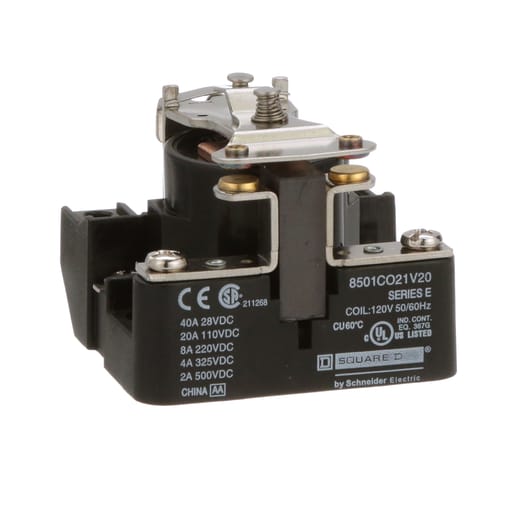

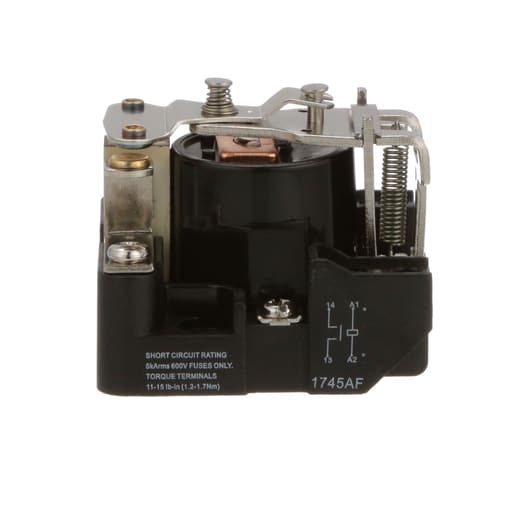

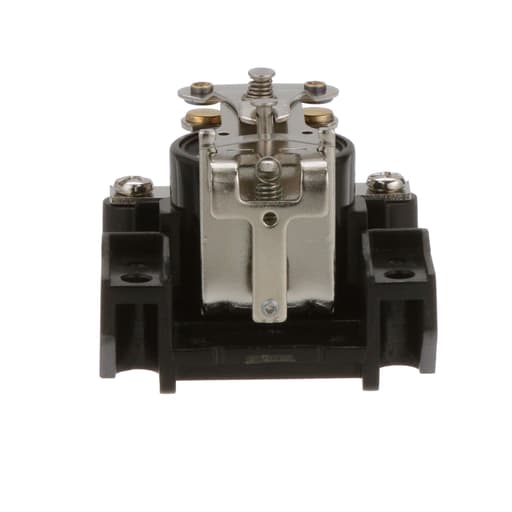

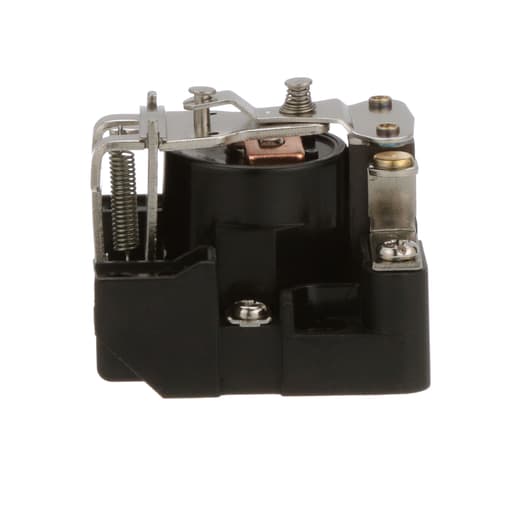

Square-D / Schneider - Square D 8501CO21V20 120 VAC 30 Amp 1-Pole SPST 1NO Panel Mount AC Operated Power Relay
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901052210
Catalog Number - 8501CO21V20
Country of Origin - China
Depths - 2.18 Inch
ERP_productname - SQD 8501CO21V20 RELAY 220VDC 8AMP TYPE C +OPTIONS
Packaging
1 ea
EAN
00785901052210
Part #
213274
Catalog #
8501CO21V20
Commercial reference
8501CO21V20
12-Digit UPC:
785901052210
Catalog Number:
8501CO21V20
Country of Origin:
China
Depths:
2.18 Inch
ERP_productname:
SQD 8501CO21V20 RELAY 220VDC 8AMP TYPE C +OPTIONS
Family Brand Name:
Square D
Heights:
2.43 Inch
Number of Phases:
1 Phase
Sub Brand:
Type C
Type:
Power relay
Widths:
2.5 in
SoneparProductId:
SKU_US_26412544
8501C power relays are used to control VDC loads. These power relays are available with a variety of contact configurations. This relay has a SPDT contact configuration for VDC loads with one normally open and no normally closed contact. A variety of coil voltages are available. This relay has a 120 VAC nonreplaceable coil. Designed with heavy duty contacts that are rated for 20 A resistive rating at 110 VDC or 8 A resistive rating at 220 VDC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications. Compatible Products: 9991UE1
