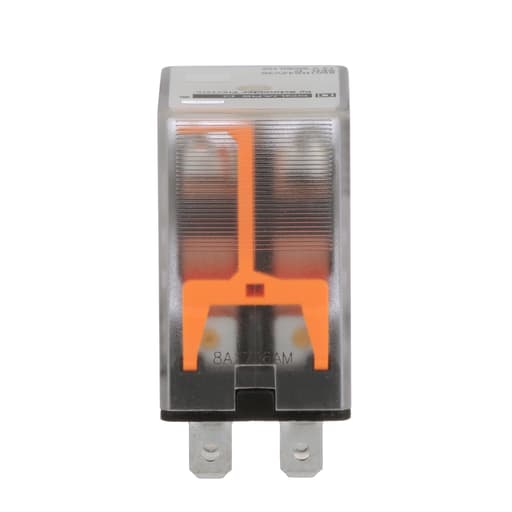

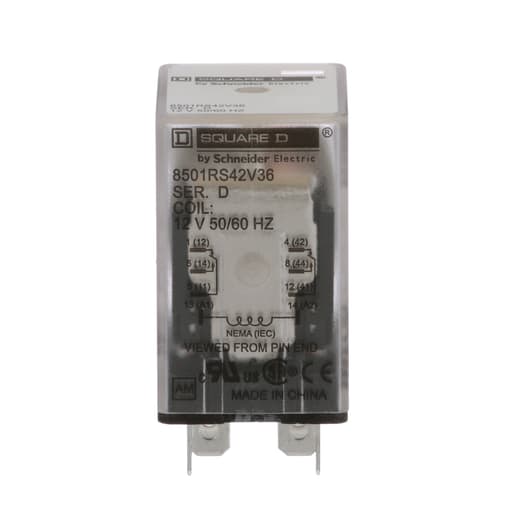

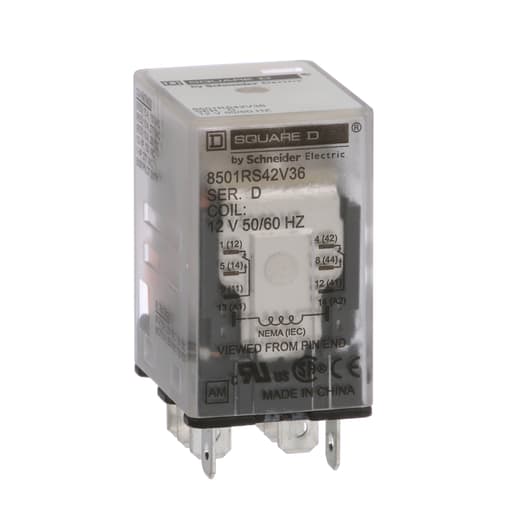

Square-D / Schneider - Square D 8501RS42V36 12 VAC 10 Amp DPDT 2CO Socket Mount AC Operated Miniature Plug-In Relay
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901131298
Amperage - 10@120/240VAC Amp
Applications - 0.5 120 V AC-1 277 V AC,8501NR42
Catalog Number - 8501RS42V36
Country of Origin - China
Packaging
1 ea
EAN
00785901131298
Part #
134873
Catalog #
8501RS42V36
Commercial reference
8501RS42V36
12-Digit UPC:
785901131298
Amperage:
10@120/240VAC Amp
Applications:
0.5 120 V AC-1 277 V AC,8501NR42
Catalog Number:
8501RS42V36
Country of Origin:
China
Depths:
1.65 Inch
ERP_productname:
SQD 8501RS42V36 RELAY 240VAC 10AMP TYPE R +OPTIONS
Family Brand Name:
Square D
Heights:
1.07 Inch
Mounting Type:
Socket
Tc Connection:
SPADE
Type:
DPDT,MINIATURE RELAY,STANDARD
Widths:
0.83 in
SoneparProductId:
SKU_US_26896318

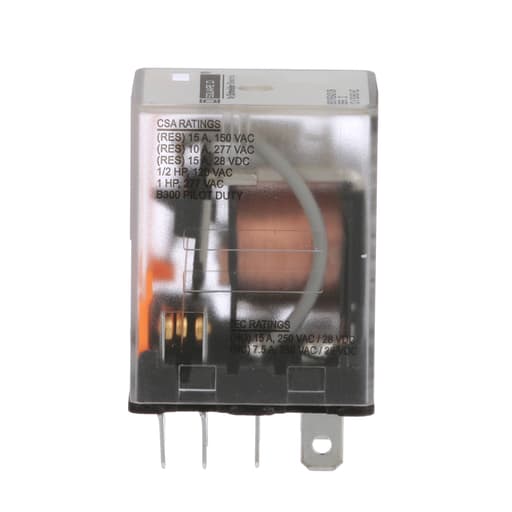

8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR42 or 8501NR42B relay socket. Relay is available with DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 15 ampere resistive rating at 277 VAC, at 120 VAC and at 28 VDC, a 1/2 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 12 VAC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
