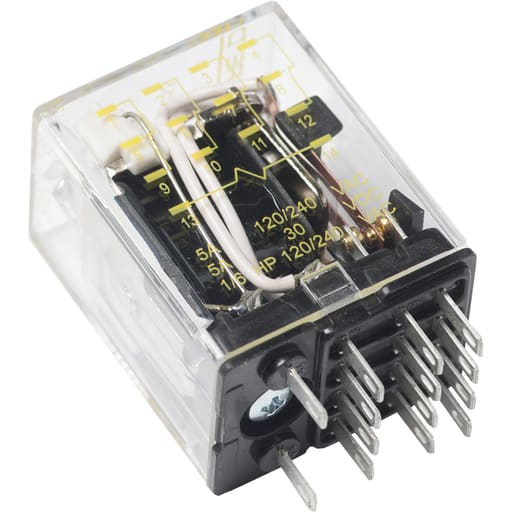

Square-D / Schneider - Square D 8501RSD14V60 110 VDC 5 Amp 4PDT 4CO Socket Mount DC Operated Miniature Plug-In Relay
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901559559
Amperage - 5 Amp
Applications - 0.33 120 V AC-0.5 277 V AC,8501NR45
Catalog Number - 8501RSD14V60
Country of Origin - China
Packaging
1 ea
EAN
00785901559559
Part #
227884
Catalog #
8501RSD14V60
Commercial reference
8501RSD14V60
12-Digit UPC:
785901559559
Amperage:
5 Amp
Applications:
0.33 120 V AC-0.5 277 V AC,8501NR45
Catalog Number:
8501RSD14V60
Country of Origin:
China
Depths:
1.63 Inch
ERP_productname:
SQD 8501RSD14V60 RELAY 240VAC 5AMP TYPE R +OPTIONS
Family Brand Name:
Square D
Heights:
1.1 Inch
Mounting Type:
Socket
Tc Connection:
SPADE
Type:
4PDT,MINIATURE RELAY,LOW VOLTAGE
Widths:
0.83 in
SoneparProductId:
SKU_US_26902620
8501RS miniature plug in relays are designed for control circuit logic applications. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR45 or 8501NR45B relay socket. Relay is available with 4PDT contact arrangements. It has four normally open and four normally closed contacts. The contacts have a 6 ampere resistive rating at 277 VAC, an 8 ampere resistive rating at 120 VAC and 30 VDC, a 1/3 HP rating at 120 VAC, a 1/2 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 110 VDC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.
