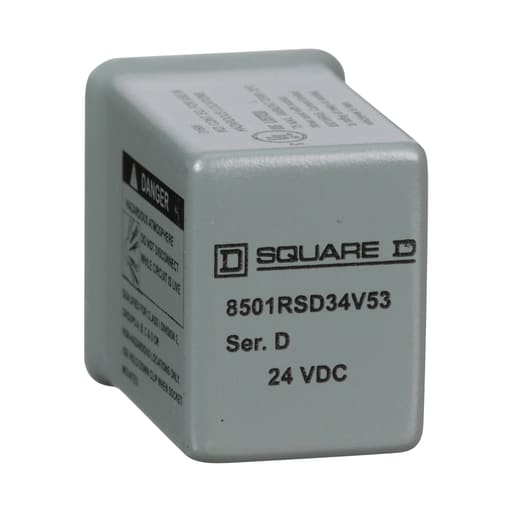

Square-D / Schneider - Square D 8501RSD34V53 24 VDC 5 Amp 4PDT 4CO Socket Mount DC Operated Miniature Plug-In Relay

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901031895

  • Amperage - 5 Amp

  • Applications - 8501NR45

  • Catalog Number - 8501RSD34V53

  • Country of Origin - USA

Packaging

  • 1 ea

EAN

00785901031895

Part #

154432

Catalog #

8501RSD34V53

Commercial reference

8501RSD34V53

12-Digit UPC:

785901031895

Amperage:

5 Amp

Applications:

8501NR45

Catalog Number:

8501RSD34V53

Country of Origin:

USA

Depths:

38.9 mm

ERP_productname:

SQD 8501RSD34V53

Family Brand Name:

Square D

Heights:

29.4 mm

Mounting Type:

Socket

Tc Connection:

SPADE

Type:

Miniature Relay;Low voltage;4PDT

Widths:

23.1 mm

SoneparProductId:

SKU_US_26507109

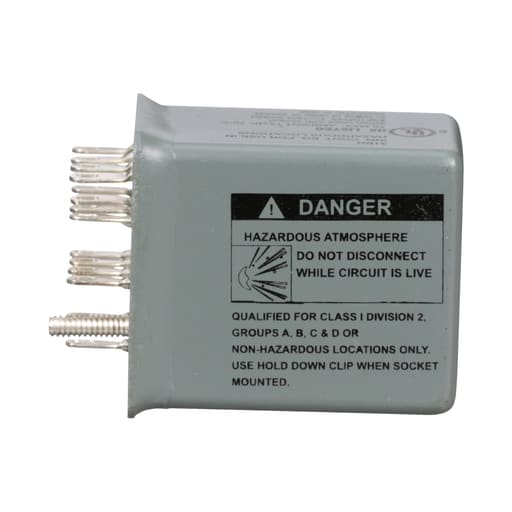

8501RS miniature plug in relays are designed for use in Class 1 Division 2 hazardous locations. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 8501NR45 or 8501NR45B relay socket. Relay is available with 4PDT contact arrangements. It has four normally open and four normally closed contacts. The contacts have a 5 ampere resistive rating at 240 VAC, at 120 VAC and at 30 VDC. Relays can be ordered with a wide variety of coil voltages. This relay has a 24 VDC nonreplaceable coil. Relay does not have a green LED indicator. 8501RS relays are UL listed with Square D relay sockets, UL component recognized and CSA certified. Prop 65: \"WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov\ - Compatible Products: 8501NR45; 8501NR45B; 9080MH320; 9080MH339; 9080MH220; 9080MH239; 9080MHA10
