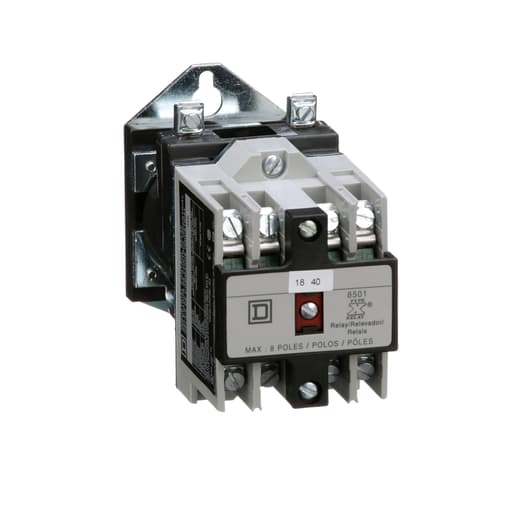

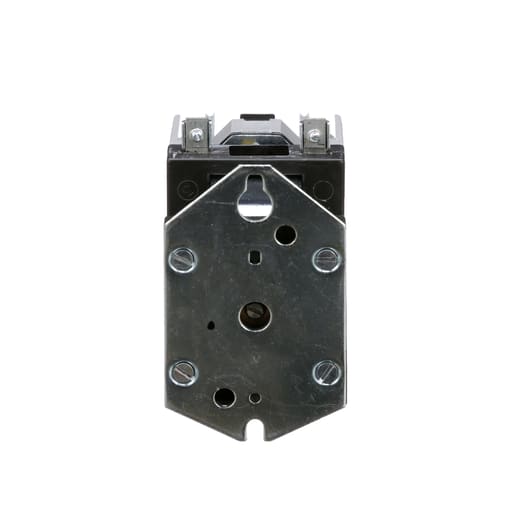

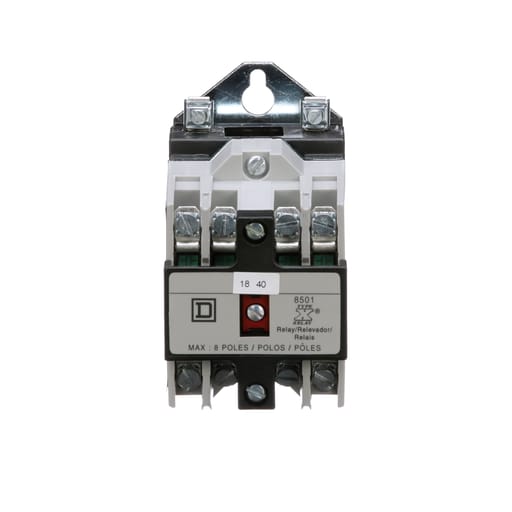

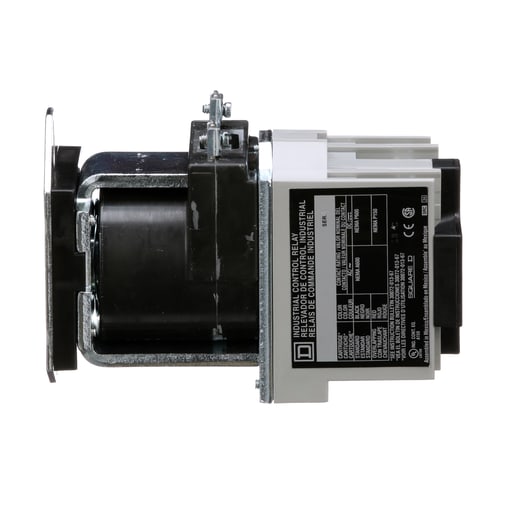

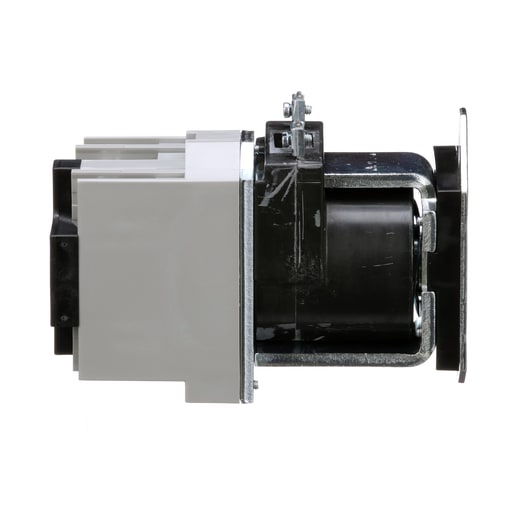

Square-D / Schneider - Square D 8501XDO20V51 12 VDC 10/5 Amp 2-Pole 2NO Panel Mount DC Operated Control Relay
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901179450
Amperage - 5/10 Amp
Applications - DC CONTROL
Catalog Number - 8501XDO20V51
Country of Origin - Mexico
Packaging
1 ea
EAN
00785901179450
Part #
149237
Catalog #
8501XDO20V51
Commercial reference
8501XDO20V51
12-Digit UPC:
785901179450
Amperage:
5/10 Amp
Applications:
DC CONTROL
Catalog Number:
8501XDO20V51
Country of Origin:
Mexico
Current:
10 Amp
Depths:
5.17 Inch
ERP_productname:
SQD 8501XDO20V51 RELAY 600VAC 10AMP NEMA +OPTIONS
Family Brand Name:
Square D
Heights:
3.56 Inch
Mounting Type:
Panel
Number of Poles:
2 Pole
Size:
2.23 IN,3.56 IN,5.17 IN
Tc Connection:
AWG 18...AWG 12 COPPER,SCREW CLAMP TERMINALS
Type:
CONTROL,RELAY
Widths:
2.23 in
SoneparProductId:
SKU_US_26275277
8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity.RS miniature plug in relays are designed control circuit logic applications. They are ideal for applications where long life, high reliablity and ease of maintence are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. The relays feature straight through wiringwhich make wiring easier. Plug in contact cartridges makes contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. The replaceable coils are available in a wide variety of voltages. 8501X NEMA machine tool relays are UL Listed and CSA Certified.
