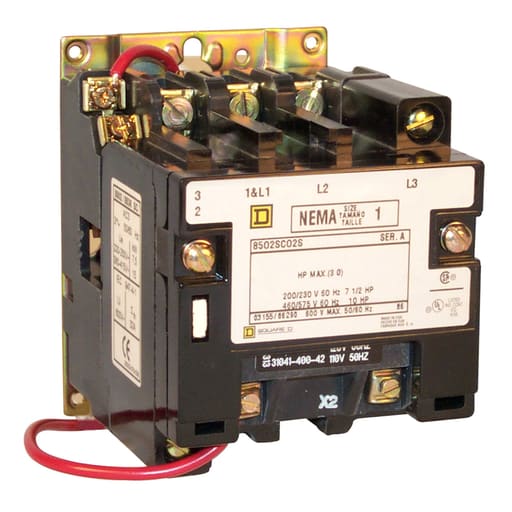

Square-D / Schneider - Square D 8502SCO5V02S 110/120 VAC 27 Amp 1-Pole Open Type Full Voltage Non-Reversing Magnetic Contactor

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 1 pole NEMA Size 1 non-reversing contactor has a 27 ampere rating. Single phase NEMA Size 1 contactors have 2 HP at 115 VAC and 3 HP at 230 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 110/120 VAC 50/60 Hz coil that is wired for separate control. This NEMA contactor is an open device without an enclosure. This contactor is 4.34 inches tall, 3.22 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
