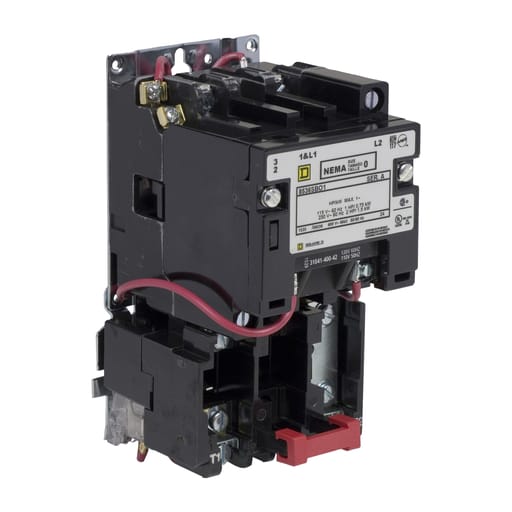

Square-D / Schneider - Square D 8536SBO1V02 110/120 VAC 18 Amp 2 Hp 2-Pole Open Type Full Voltage Non-Reversing Magnetic Starter

CopyCopy
Square-D / Schneider - Square D 8536SBO1V02 110/120 VAC 18 Amp 2 Hp 2-Pole Open Type Full Voltage Non-Reversing Magnetic Starter

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901080367

  • Amperage - 18 Amp

  • Applications - USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS

  • Catalog Number - 8536SBO1V02

  • Coil Voltage - 110 V AC 50 Hz;120 V AC 60 Hz

Packaging

  • 1 ea

EAN

00785901080367

Part #

206902

Catalog #

8536SBO1V02

Commercial reference

8536SBO1V02

12-Digit UPC:

785901080367

Amperage:

18 Amp

Applications:

USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS

Catalog Number:

8536SBO1V02

Coil Voltage:

110 V AC 50 Hz;120 V AC 60 Hz

Country of Origin:

USA

Current:

18 Amp

Depths:

107 mm

ERP_productname:

SQD 8536SBO1V02 STARTER 600VAC 18AMP NEMA +OPTIONS

Enclosure:

NOT RATED (OPEN DEVICE)

Family Brand Name:

Square D

Heights:

172 mm

NEMA Size:

0

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Size:

4.22 in

Sub Brand:

S

Tc Connection:

Screw clamp terminals

Type:

Motor starter;No control units

Voltage:

600 Volt

Widths:

89 mm

SoneparProductId:

SKU_US_26479816

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 2 pole NEMA Size 0 non-reversing starter has an 18 ampere rating. This NEMA Size 0 motor starter has single phase ratings of 1 HP at 115 VAC and 2 HP at 230 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for common control. This NEMA starter is an open device without an enclosure. This starter is 6.77 inches tall, 3.50 inches wide and 4.22 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 9999SPL28G; 9999SP28R; 9999RR04; 9999SX6; 9999SX7; 9999SX8; 9999SPL28R; 9999SC8; 9999AC04
