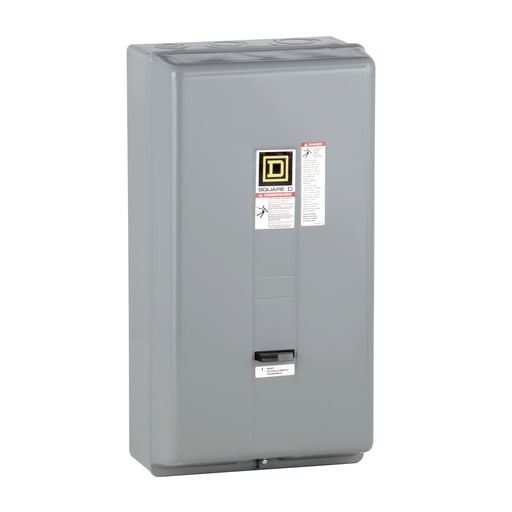

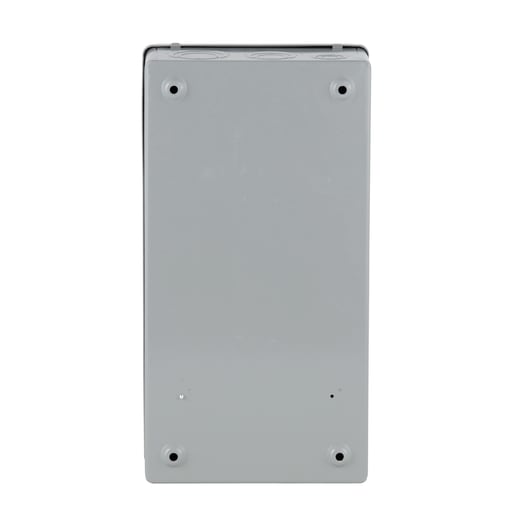

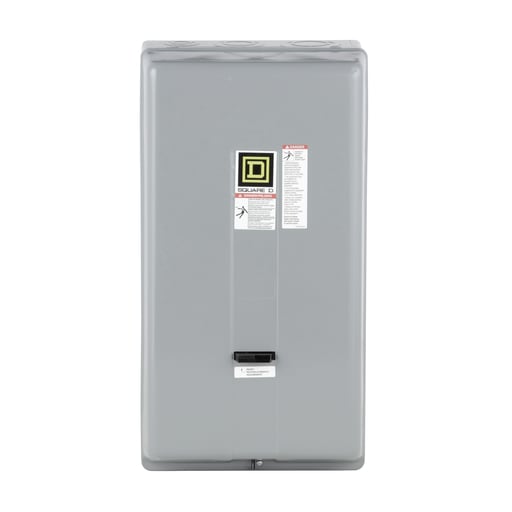

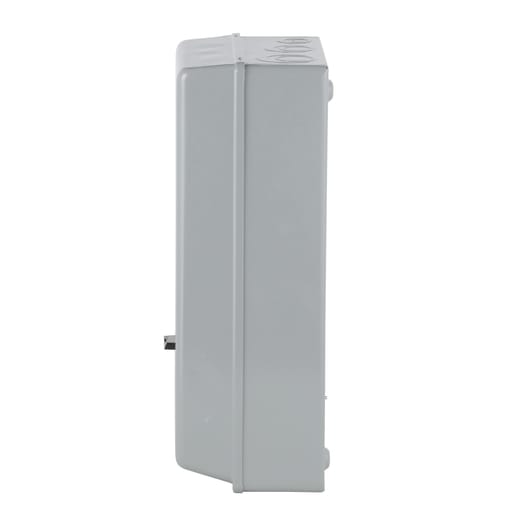

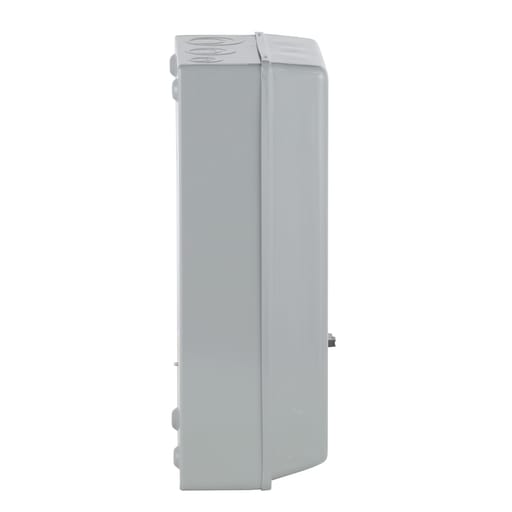

Square-D / Schneider - Square D 8536SEG1V01S <1000 VAC Motor Control Starter

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901116981

  • Amperage - 90 Amp

  • Applications - USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS

  • Catalog Number - 8536SEG1V01S

  • Country of Origin - Mexico

Packaging

  • 1 ea

EAN

00785901116981

Part #

226389

Catalog #

8536SEG1V01S

Commercial reference

8536SEG1V01S

12-Digit UPC:

785901116981

Amperage:

90 Amp

Applications:

USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS

Catalog Number:

8536SEG1V01S

Country of Origin:

Mexico

Current:

90 Amp

Depths:

291 mm

ERP_productname:

SQD 8536SEG1V01S STARTER MOTOR CONTROL <1000VAC

Enclosure:

NEMA 1

Family Brand Name:

Square D

Heights:

554 mm

NEMA Size:

3

Number of Phases:

3 Phase

Number of Poles:

3 Pole

Size:

3

Sub Brand:

S

Tc Connection:

BOX LUG

Type:

NON-REVERSING STARTER

Voltage:

600 VAC

Widths:

213 mm

SoneparProductId:

SKU_US_26892297

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 3 non-reversing starter has a 90 ampere rating. This NEMA Size 3 motor starter has 3 phase ratings of 25 HP at 200 VAC, 30 HP at 230 VAC and 50 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type CC thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 24 VAC 60 Hz operating coil wired for separate control. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 21.81 inches tall, 11.44 inches wide and 8.38 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.
