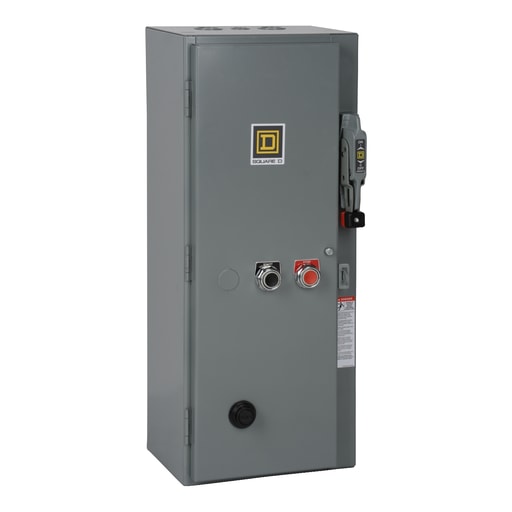

Square-D / Schneider - Square D 8538SDG14V02S <1000 VAC Motor Control Starter

Type S nonreversing fusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 2 starters have ratings of up to 25 HP at 480 and 600 VAC poly phase. Combination starter has 60 ampere Class H fuse clips. This 3 pole starter is for poly phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a melting alloy type overload relay which uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 22.50 inches tall, 10.50 inches wide and 9.59 inches deep. A wide variety of accessories are available for Type S starters. Type S combination starters are UL listed and CSA certified. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 9999SPL28R; 9999SPL28G; 9999SP28R; 9999SC8; 9999SX6; 9999SX7; 9999SX8
