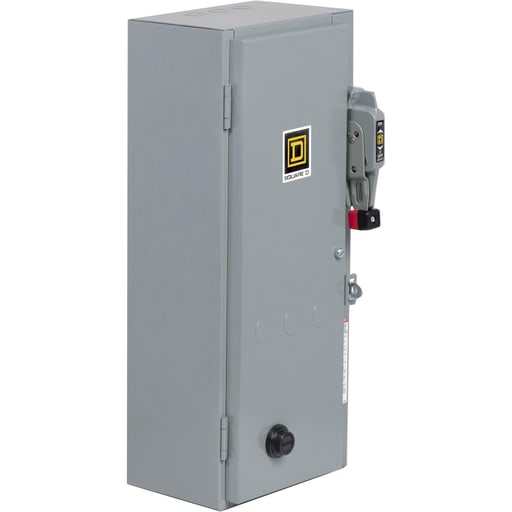

Square-D / Schneider - Square D 8539SCG44V02S <1000 VAC Motor Control Starter

CopyCopy
Square-D / Schneider - Square D 8539SCG44V02S <1000 VAC Motor Control Starter

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901569213

  • Amperage - 27 Amp

  • Applications - USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS - DISCONNECT (C/B) AND STARTER IN ONE PACKAGE

  • Catalog Number - 8539SCG44V02S

  • Country of Origin - USA

Packaging

  • 1 ea

EAN

00785901569213

Part #

377411

Catalog #

8539SCG44V02S

Commercial reference

8539SCG44V02S

12-Digit UPC:

785901569213

Amperage:

27 Amp

Applications:

USED FOR FULL-VOLTAGE STARTING AND STOPPING OF AC SQUIRREL CAGE MOTORS - DISCONNECT (C/B) AND STARTER IN ONE PACKAGE

Catalog Number:

8539SCG44V02S

Country of Origin:

USA

Disconnect Type:

Mag-Gard circuit breaker

ERP_productname:

SQD 8539SCG44V02S NEMA COMBINATION STARTER, TYPE S, HHL ELECTRONIC MOTOR CIRCUIT PROTECTOR, SIZE 1, 27A, 3 PHASE, 120VAC COIL, NEMA 1

Enclosure:

NEMA 1

Family Brand Name:

Square D

NEMA Size:

1

Number of Poles:

3 Pole

Size:

1

Sub Brand:

S

Tc Connection:

BOX LUG

Type:

S

Voltage:

600 Volt

SoneparProductId:

SKU_US_26619837

Type S nonreversing circuit breaker combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 1 starters have ratings of up to 10 HP at 480 and 600 VAC three phase. This circuit breaker combination starter has a HHL Mag-Gard electronic motor circuit protector. This 3 pole starter is for three phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control.  This nonreversing NEMA combination starter has a melting alloy type overload relay which uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. A wide variety of accessories are available for Type S starters. Type S combination starters are UL listed and CSA certified. Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
