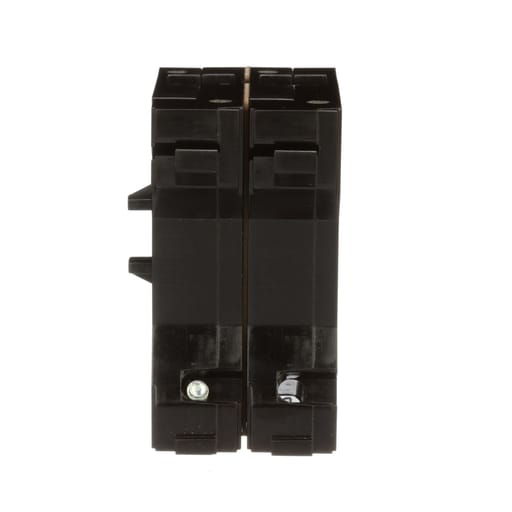

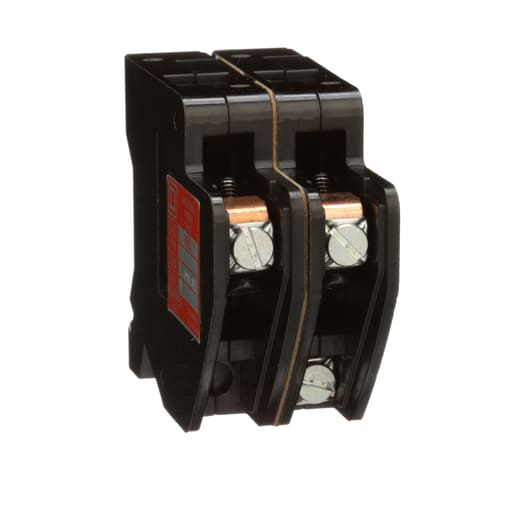

Square-D / Schneider - Square D 8903L3L 1-Pole Lighting Contactor Power Pole Adder Kit
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901620242
Applications - ADDITION OF POWER POLES ON 8903L/LX LIGHTING CONTACTORS
Catalog Number - 8903L3L
Country of Origin - Mexico
Depths - 50 mm
Packaging
1 ea
EAN
00785901620242
Part #
161601
Catalog #
8903L3L
Commercial reference
8903L3L
12-Digit UPC:
785901620242
Applications:
ADDITION OF POWER POLES ON 8903L/LX LIGHTING CONTACTORS
Catalog Number:
8903L3L
Country of Origin:
Mexico
Depths:
50 mm
ERP_productname:
SQD 8903L3L 2P PWR POLE ADDER KIT
Family Brand Name:
Square D
Heights:
77 mm
Size:
1.97 in
Sub Brand:
SCHNEIDER ELECTRIC
Tc Connection:
Screw-clamp terminals
Type:
Auxiliary Contact Module
Widths:
64 mm
SoneparProductId:
SKU_US_26416656
8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This two pole power pole can be added to the left side of any 8903L lighting contactor. This power pole has two normally open contact that can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. 8903L lighting contactors are limited to a maximum of 12 contacts. The power pole is UL Listed and CSA Certified when used with 8903L lighting contactors. Compatible Products: 8903LG1000V02; 8903LG1000V04; 8903LG1200V04; 8903LO1000V02; 8903LO40V02; 8903LO60V02; 8903LO80V02; 8903LO80V04; 8903LXG1200V02; 8903LXG1200V02R6; 8903LXG40V02; 8903LXG60V02; 8903LXO1000V02; 8903LXO1200V02; 8903LXO40V02; 8903LXO80V01; 8903LXO80V02; 8903LXO80V04; 8903LG20V02; 8903LG30V02; 8903LG40V02; 8903LG60V02; 8903LG60V04; 8903LG80V02; 8903LG80V04; 8903LH60V02; 8903LO20V02; 8903LO30V02
