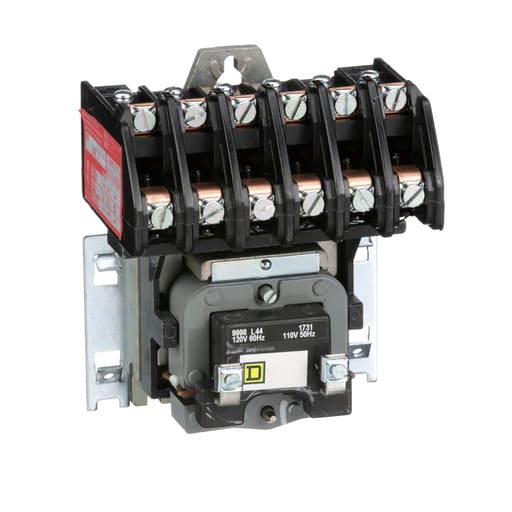

Square-D / Schneider - Square D 8903LO60V02 110/120 VAC 30 Amp 6-Pole 6NO Open Type Electrically Held Lighting Contactor
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901851721
Applications - ELECTRICALLY HELD
Catalog Number - 8903LO60V02
Coil Voltage - 110@50Hz/120@60Hz VAC
Country of Origin - Mexico
Packaging
1 ea
EAN
00785901851721
Part #
161245
Catalog #
8903LO60V02
Commercial reference
8903LO60V02
12-Digit UPC:
785901851721
Applications:
ELECTRICALLY HELD
Catalog Number:
8903LO60V02
Coil Voltage:
110@50Hz/120@60Hz VAC
Country of Origin:
Mexico
Current:
20 Amp
Depths:
79 mm
ERP_productname:
SQD 8903LO60V02 120V CONTACTOR
Family Brand Name:
Square D
Heights:
127 mm
Number of Poles:
6 Pole
Size:
3.11 in
Sub Brand:
8903L
Tc Connection:
Screw-clamp terminals
Type:
Electrically Held Lighting Contactor
Widths:
108 mm
SoneparProductId:
SKU_US_69893092
8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 6 pole device has 6 NO contacts. Supplied with a 110/120 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is an open device. A variety of enclosure types are available. Coil and contacts are easily replaced. Lighting contactor is 5.00 inches tall, 4.25 inches wide and 3.12 inches deep. 8903L lighting contactors are UL Listed and CSA Certified. Compatible Products: 8903L3L; 8903L3R; 9999SP28R; 9999SPL28G; 9999SPL28R; 9001KA2; 9999SC2; 9999SC22; 9001KN244 - Spare Part Products: 9998L55; 9998RA5B
