Square-D / Schneider - Square D 8903SMG12V02 110/120 VAC 30 Amp 4-Pole NEMA 1 Mechanically Held Lighting Contactor
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901102557
Applications - MECHANICALLY HELD
Catalog Number - 8903SMG12V02
Coil Voltage - 120@60Hz to 110@50Hz VAC
Country of Origin - Mexico
Packaging
1 ea
EAN
00785901102557
Part #
159916
Catalog #
8903SMG12V02
Commercial reference
8903SMG12V02
12-Digit UPC:
785901102557
Applications:
MECHANICALLY HELD
Catalog Number:
8903SMG12V02
Coil Voltage:
120@60Hz to 110@50Hz VAC
Country of Origin:
Mexico
Current:
30 Amp
Depths:
134 mm
ERP_productname:
SQD 8903SMG12V02 LIGHTING CONTACTOR 600VAC 30A NEMA
Family Brand Name:
Square D
Heights:
254 mm
Number of Poles:
4 Pole
Size:
5.28 in
Sub Brand:
8903S
Tc Connection:
Lugs
Type:
Mechanically Held Lighting Contactor
Widths:
152 mm
SoneparProductId:
SKU_US_26367910

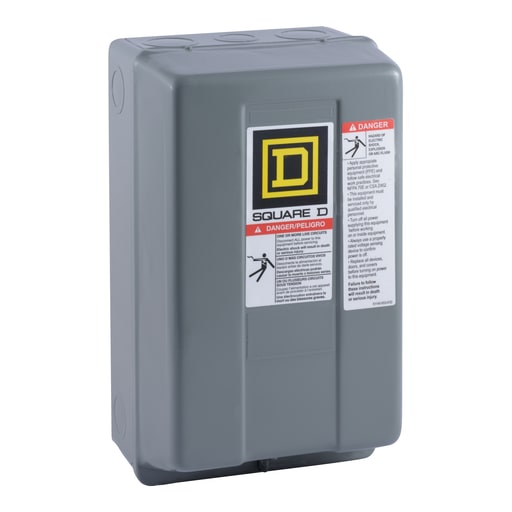

8903S lighting contactors are for lighting control applications. 8903S lighting contactors are available in either mechanically held or electrically held versions. This is a mechanically held device. This contactor is designed to switch 30 amperes. This 4 pole device has 4 normally open contacts. Replacement contact kits are available for this lighting contactor. Interchangeable coil is available in a wide variety of common voltages up to 600 VAC. Contactor is supplied with a 110/120 VAC 50/60 Hz coil. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this lighting contactor. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.28 inches deep. A wide variety of accessories are available for Type S lighting contactors. 8903S lighting contactors are UL Listed and CSA Certified.
