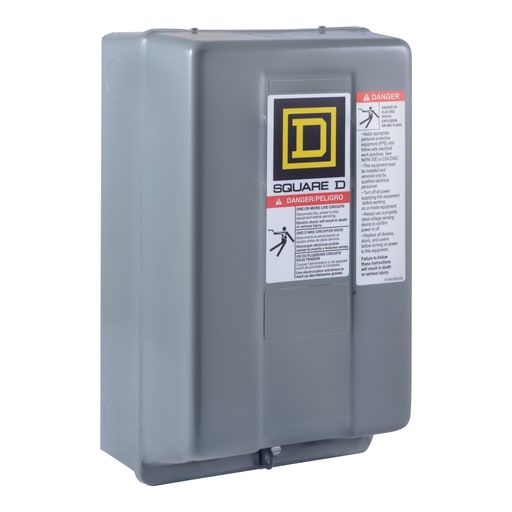

Square-D / Schneider - Square D 8903SMG1V02 110/120 VAC 30 Amp 2-Pole NEMA 1 Electrically Held Lighting Contactor
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901619581
Applications - ELECTRICALLY HELD
Catalog Number - 8903SMG1V02
Coil Voltage - 120@60Hz to 110@50Hz VAC
Country of Origin - USA
Packaging
1 ea
EAN
00785901619581
Part #
161643
Catalog #
8903SMG1V02
Commercial reference
8903SMG1V02
12-Digit UPC:
785901619581
Applications:
ELECTRICALLY HELD
Catalog Number:
8903SMG1V02
Coil Voltage:
120@60Hz to 110@50Hz VAC
Country of Origin:
USA
Current:
30 Amp
Depths:
134 mm
ERP_productname:
SQD 8903SMG1V02 120V CONTACTOR
Family Brand Name:
Square D
Heights:
254 mm
Number of Poles:
2 Pole
Size:
5.28 in
Sub Brand:
8903S
Tc Connection:
Lugs
Type:
Electrically Held Lighting Contactor
Widths:
152 mm
SoneparProductId:
SKU_US_25676079
8903S lighting contactors are for lighting control applications. 8903S lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. This contactor is designed to switch 30 amperes. This device 2 pole device has 2 NO contacts. Supplied with a 110/120 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is in a NEMA 1 painted sheet steel enclosure, but a variety of other enclosure types are available. Coil and contacts are easily replaced. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.28 inches deep. 8903L lighting contactors are UL Listed and CSA Certified. Compatible Products: 9999SPL28R; 9999SPL28G; 9999SP28R; 9999SC8; 9999SP2R; 9999SA2; 9999SC22; 9999SC2; 9999SX6; 9999SX7; 9999SX8
