Square-D / Schneider - Square D 8903SMG1V03 220/240 VAC 30 Amp 2-Pole NEMA 1 Electrically Held Lighting Contactor
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901861799
Applications - ELECTRICALLY HELD
Catalog Number - 8903SMG1V03
Coil Voltage - 240 V AC 60 Hz;220 V AC 50 Hz
Country of Origin - Mexico
Packaging
1 ea
EAN
00785901861799
Part #
172702
Catalog #
8903SMG1V03
Commercial reference
8903SMG1V03
12-Digit UPC:
785901861799
Applications:
ELECTRICALLY HELD
Catalog Number:
8903SMG1V03
Coil Voltage:
240 V AC 60 Hz;220 V AC 50 Hz
Country of Origin:
Mexico
Current:
30 Amp
Depths:
134 mm
ERP_productname:
SQD 8903SMG1V03 LIGHTING CONTACTOR 600VAC 30A NEMA
Family Brand Name:
Square D
Heights:
254 mm
Number of Poles:
2 Pole
Size:
2P
Sub Brand:
S
Tc Connection:
Lugs
Type:
Electrically Held Lighting Contactor
Widths:
152 mm
SoneparProductId:
SKU_US_26898520

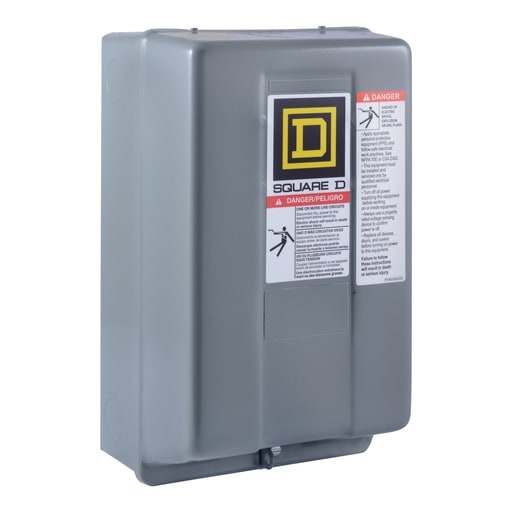

8903S lighting contactors are for lighting control applications. 8903S lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. This contactor is designed to switch 30 amperes. This device 2 pole device has 2 NO contacts. Supplied with a 220/240 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is in a NEMA 1 painted sheet steel enclosure, but a variety of other enclosure types are available. Coil and contacts are easily replaced. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.28 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.
