Square-D / Schneider - Square D 8903SPG3V02 110/120 VAC 60 Amp 4-Pole NEMA 1 Electrically Held Lighting Contactor
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901625872
Applications - ELECTRICALLY HELD
Catalog Number - 8903SPG3V02
Coil Voltage - 120@60Hz to 110@50Hz VAC
Country of Origin - USA
Packaging
1 ea
EAN
00785901625872
Part #
163790
Catalog #
8903SPG3V02
Commercial reference
8903SPG3V02
12-Digit UPC:
785901625872
Applications:
ELECTRICALLY HELD
Catalog Number:
8903SPG3V02
Coil Voltage:
120@60Hz to 110@50Hz VAC
Country of Origin:
USA
Current:
60 Amp
Depths:
153 mm
ERP_productname:
SQD 8903SPG3V02 LIGHTING CONTACTOR 600VAC 60AMP NEMA 4 POLE E-HOLD
Family Brand Name:
Square D
Heights:
322 mm
Number of Poles:
4 Pole
Size:
6.02 in
Sub Brand:
8903S
Tc Connection:
Lugs
Type:
Electrically Held Lighting Contactor
Widths:
198 mm
SoneparProductId:
SKU_US_25617759

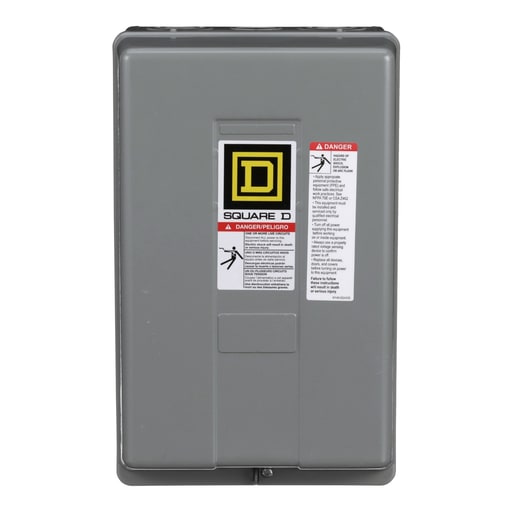

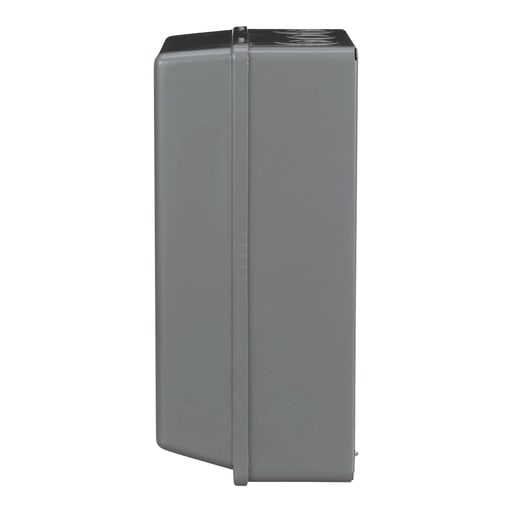

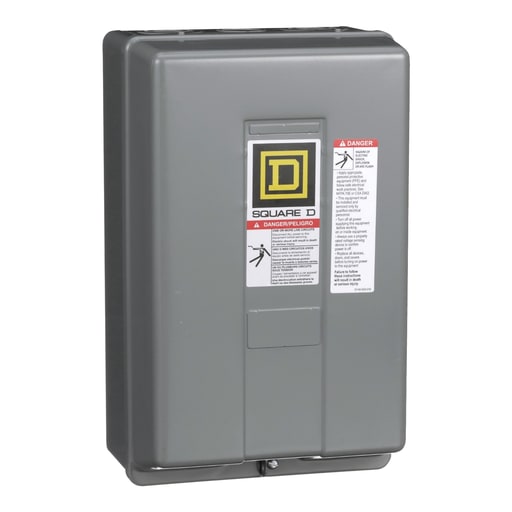

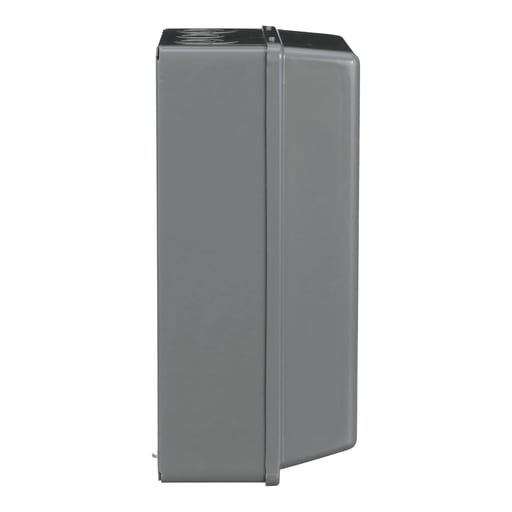

8903S lighting contactors are for lighting control applications. 8903S lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. This contactor is designed to switch 60 amperes. This device 4 pole device has 4 NO contacts. Supplied with a 110/120 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is in a NEMA 1 rated enclosure. A variety of enclosure types are available. Coil and contacts are easily replaced. Lighting contactor is 12.69 inches tall, 7.81 inches wide and 6.03 inches deep. 8903L lighting contactors are UL Listed and CSA Certified. Compatible Products: 9999SPL28R; 9999SPL28G; 9999SP28R; 9999SC8; 9999SA2; 9999SC22; 9999SC2; 9999SX6; 9999SX7; 9999SX8
