Square-D / Schneider - Square D 8903SQG11V02 100 Amp 600 VAC Lighting Contactor NEMA Push Button
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901113331
Applications - MECHANICALLY HELD
Catalog Number - 8903SQG11V02
Coil Voltage - 120@60Hz to 110@50Hz VAC
Country of Origin - Mexico
Packaging
1 ea
EAN
00785901113331
Part #
124890
Catalog #
8903SQG11V02
Commercial reference
8903SQG11V02
12-Digit UPC:
785901113331
Applications:
MECHANICALLY HELD
Catalog Number:
8903SQG11V02
Coil Voltage:
120@60Hz to 110@50Hz VAC
Country of Origin:
Mexico
Current:
100 Amp
Depths:
228 mm
ERP_productname:
SQD 8903SQG11V02 LIGHTING CONTACTOR 600VAC 100AMP NEMA
Family Brand Name:
Square D
Heights:
639 mm
Number of Poles:
3 Pole
Size:
3P
Sub Brand:
8903S
Tc Connection:
BOX LUG
Type:
S
Widths:
286 mm
SoneparProductId:
SKU_US_26555424

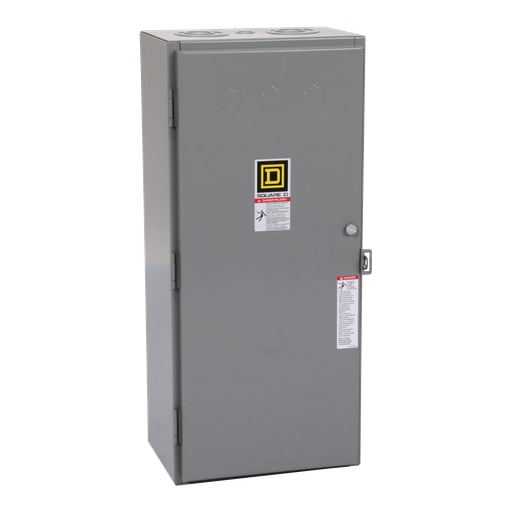

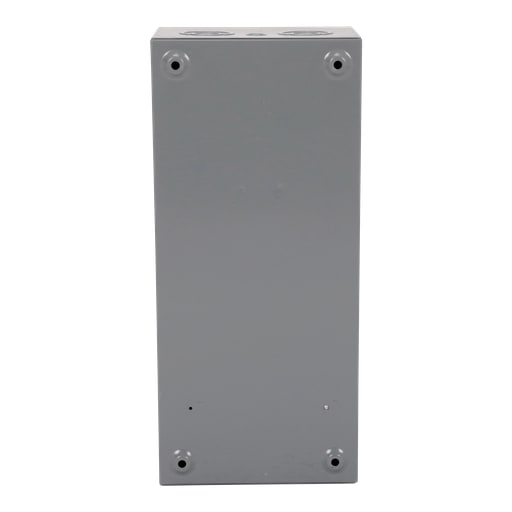

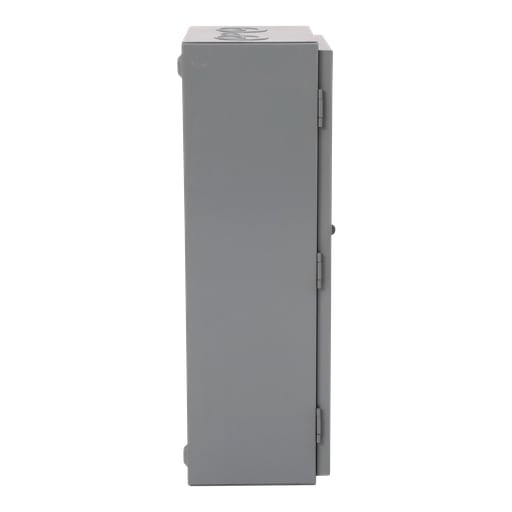

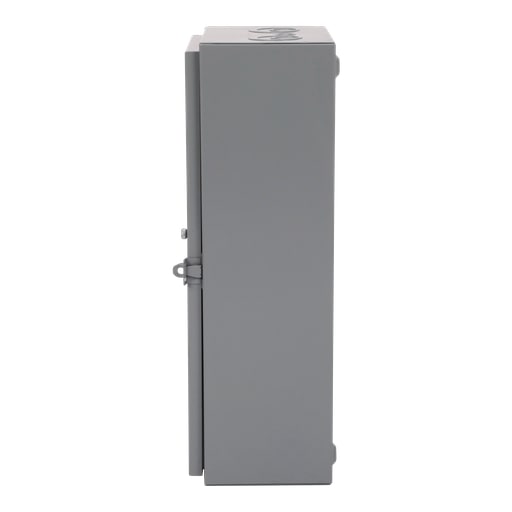

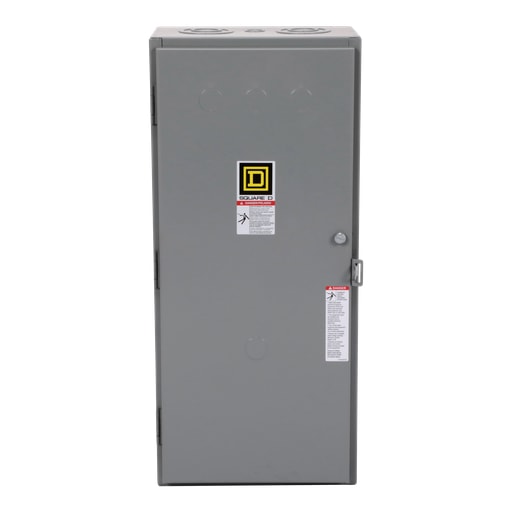

8903S lighting contactors are for lighting control applications. 8903S lighting contactors are available in either mechanically held or electrically held versions. This is a mechanically held device. This contactor is designed to switch 100 amperes. This 3 pole device has 3 normally open contacts. Replacement contact kits are available for this lighting contactor. Interchangeable coil is available in a wide variety of common voltages up to 600 VAC. Contactor is supplied with a 110/120 VAC 50/60 Hz coil. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this lighting contactor. Enclosure is 25.15 inches tall, 11.25 inches wide and 8.99 inches deep. A wide variety of accessories are available for Type S lighting contactors. 8903S lighting contactors are UL Listed and CSA Certified.
