Square-D / Schneider - Square D 8903SVO2V02 110/120 VAC 200 Amp 3-Pole Open Type Electrically Held Lighting Contactor
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901626022
Applications - ELECTRICALLY HELD
Catalog Number - 8903SVO2V02
Coil Voltage - 120@60Hz/110@50Hz VAC
Country of Origin - USA
Packaging
1 ea
EAN
00785901626022
Part #
208390
Catalog #
8903SVO2V02
Commercial reference
8903SVO2V02
12-Digit UPC:
785901626022
Applications:
ELECTRICALLY HELD
Catalog Number:
8903SVO2V02
Coil Voltage:
120@60Hz/110@50Hz VAC
Country of Origin:
USA
Current:
200 Amp
Depths:
165 mm
ERP_productname:
SQD 8903SVO2V02 LIGHTING CONTACTOR 600VAC 200A NEMA
Family Brand Name:
Square D
Heights:
232 mm
Number of Poles:
3 Pole
Size:
6.50 in
Sub Brand:
S
Tc Connection:
Lugs
Type:
Electrically Held Lighting Contactor
Widths:
152 mm
SoneparProductId:
SKU_US_26416281

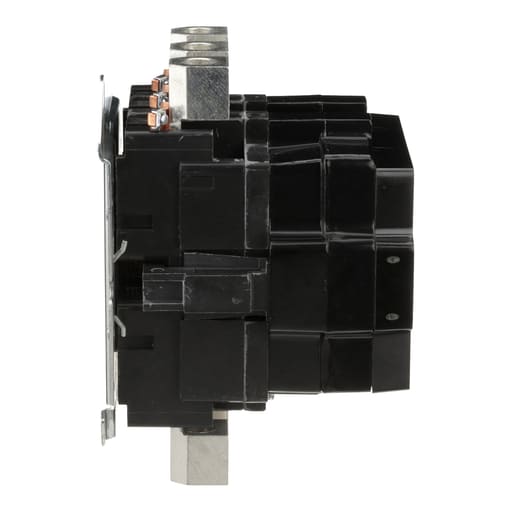

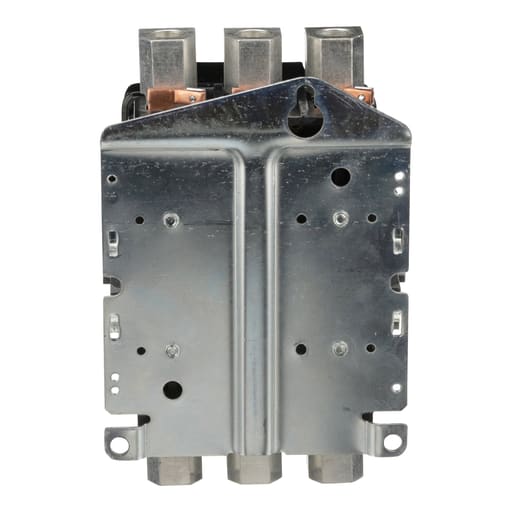

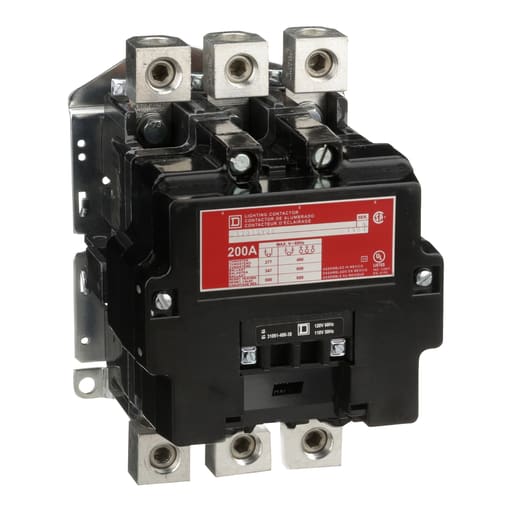

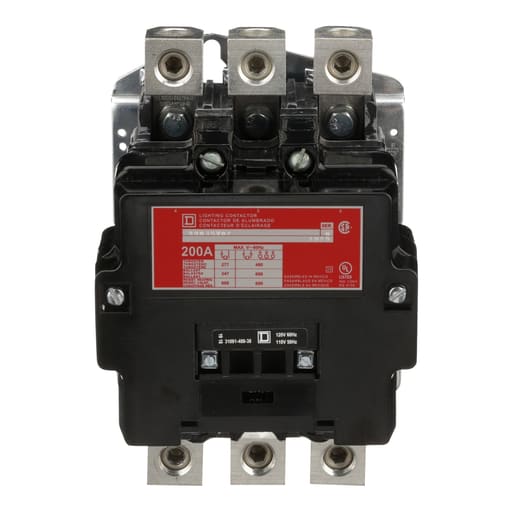

8903S lighting contactors are for lighting control applications. 8903S lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. This contactor is designed to switch 200 amperes. This device 3 pole device has 3 NO contacts. Supplied with a 110/120 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is an open device. A variety of enclosure types are available. Coil and contacts are easily replaced. Lighting contactor is 9.14 inches tall, 6.00 inches wide and 6.50 inches deep. 8903L lighting contactors are UL Listed and CSA Certified. Prop 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Compatible Products: 9999SX6; 9999SX7; 9999SX8
