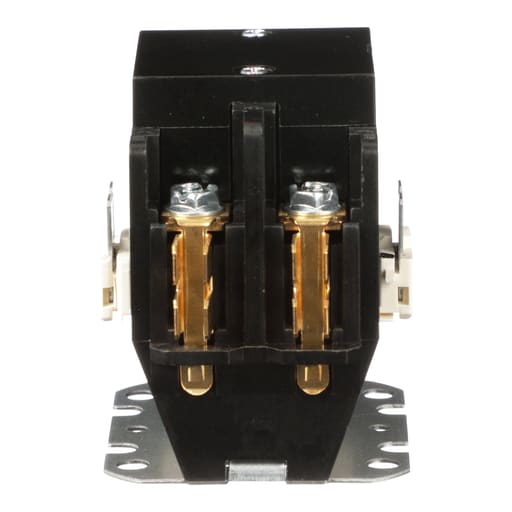

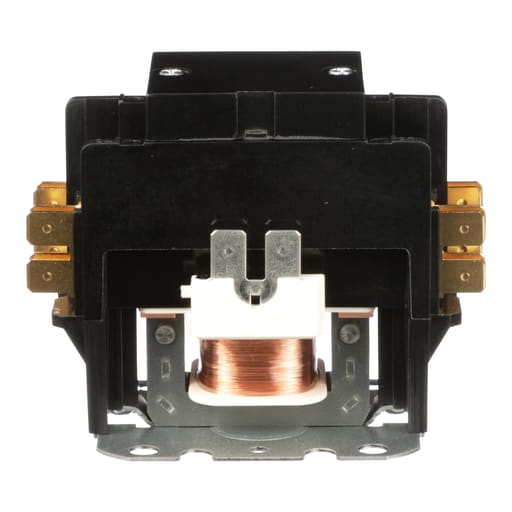

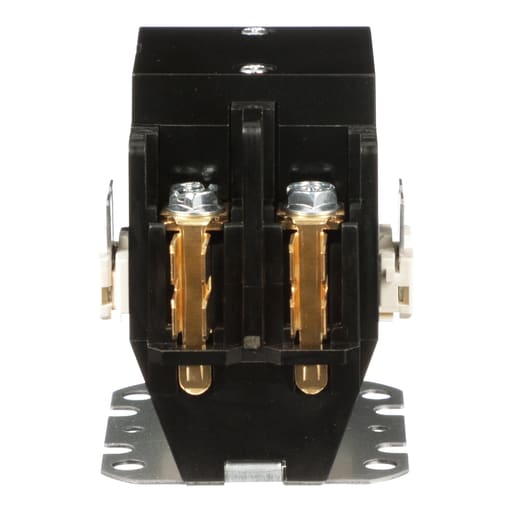

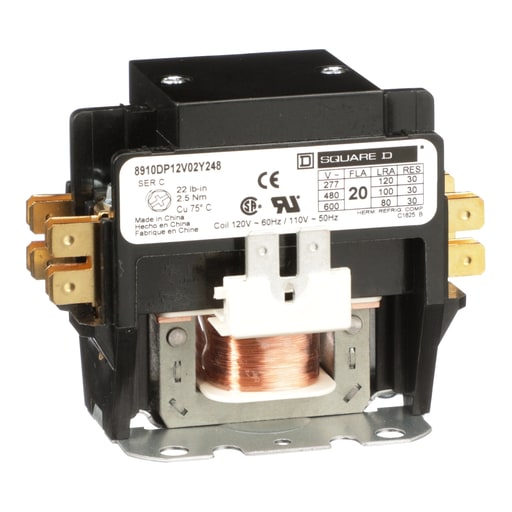

Square-D / Schneider - Square D 8910DP12V02Y248 110/120 VAC 20 Amp 2-Pole NEMA 1 Non-Reversing Definite Purpose Contactor

Essential specifications

12-Digit UPC - 785901397182
Amperage - 20 Amp
Applications - IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT.
Catalog Number - 8910DP12V02Y248
Coil Voltage - 120 V AC 60 HZ-110 V AC 50 HZ,600 V AC

Packaging

1 ea

EAN

00785901397182

Part #

187159

Catalog #

8910DP12V02Y248

Commercial reference

8910DP12V02Y248

12-Digit UPC:

785901397182

Amperage:

20 Amp

Applications:

IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT.

Catalog Number:

8910DP12V02Y248

Coil Voltage:

120 V AC 60 HZ-110 V AC 50 HZ,600 V AC

Country of Origin:

Mexico

ERP_productname:

SQD 8910DP12V02Y248 CONTACTOR 600VAC 20AMP DP +OPTIONS

Family Brand Name:

Square D

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Size:

Sub Brand:

Tc Connection:

Binder head;Quick connect terminals

Type:

Definite Purpose Contactor

Voltage:

600 Volt

SoneparProductId:

SKU_US_26276636

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 20 ampere and a resistive rating of 30 amperes. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. This device is supplied with a cover. Contactor is 2.00 inches by 3.32 inches and 2.45 tall. These contactors are UL Listed and CSA Certified. Compatible Products: 9991DPG1; 9999DMB1
