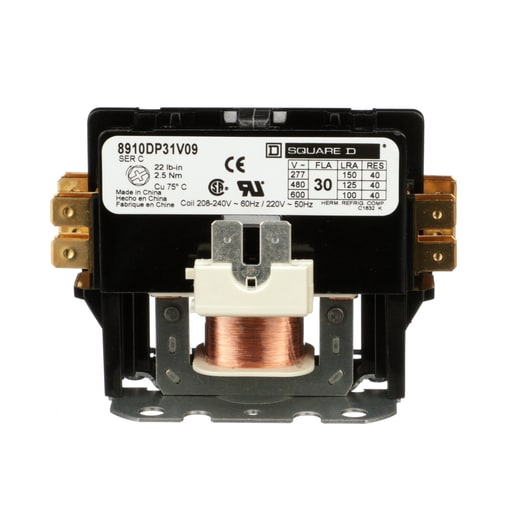

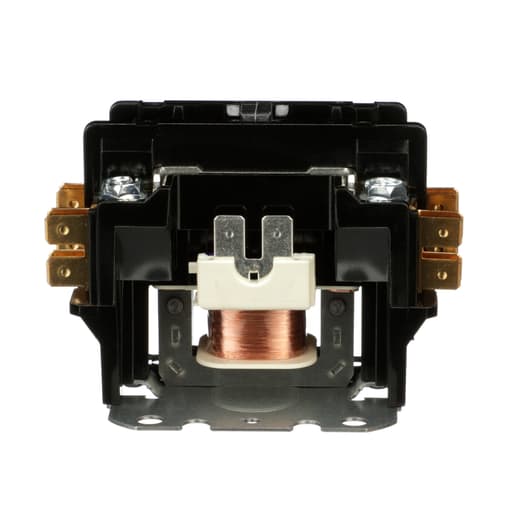

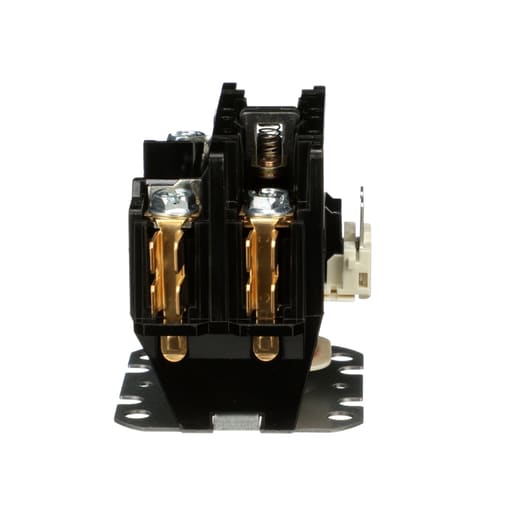

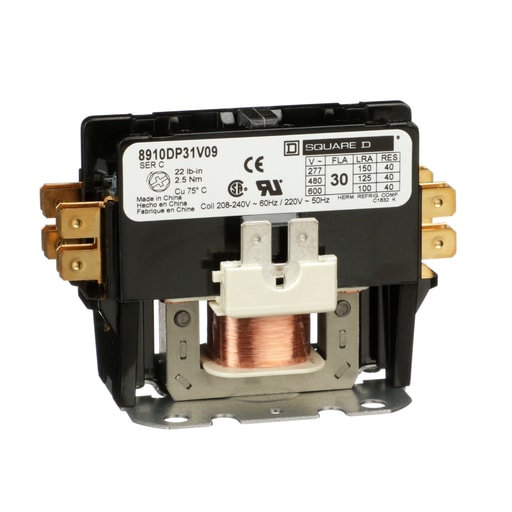

Square-D / Schneider - Square D 8910DP31V09 208 to 240 VAC 30 Amp 1-Pole 1NO NEMA 1 Non-Reversing Definite Purpose Contactor

Essential specifications

12-Digit UPC - 785901024170
Amperage - 30 Amp
Applications - IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT.
Catalog Number - 8910DP31V09
Coil Voltage - 208 to 240@60Hz/220 to 230@50Hz V

Packaging

1 ea

EAN

00785901024170

Part #

244613

Catalog #

8910DP31V09

Commercial reference

8910DP31V09

12-Digit UPC:

785901024170

Amperage:

30 Amp

Applications:

IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT.

Catalog Number:

8910DP31V09

Coil Voltage:

208 to 240@60Hz/220 to 230@50Hz V

Country of Origin:

Mexico

Depths:

61 mm

ERP_productname:

SQD 8910DP31V09 CONTACTOR, DEFINITE PURPOSE, 30A, 1 POLE, 208/240 VAC 60 HZ 220 VAC 50 HZ COIL, OPEN

Family Brand Name:

Square D

Heights:

51 mm

Number of Phases:

1 Phase

Number of Poles:

1 Pole

Size:

Sub Brand:

Tc Connection:

QUICK CONNECT/BINDER HEAD SCREW

Type:

DEFINITE PURPOSE CONTACTOR

Voltage:

600 Volt

Widths:

84 mm

SoneparProductId:

SKU_US_26924551

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This one pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz, 220 VAC 50 Hz coil. The contactor has straight through wiring. Contactor is 2.00 inches by 3.29 inches and 2.39 tall. These contactors are UL Listed and CSA Certified. Compatible Products: 9991DPG1
