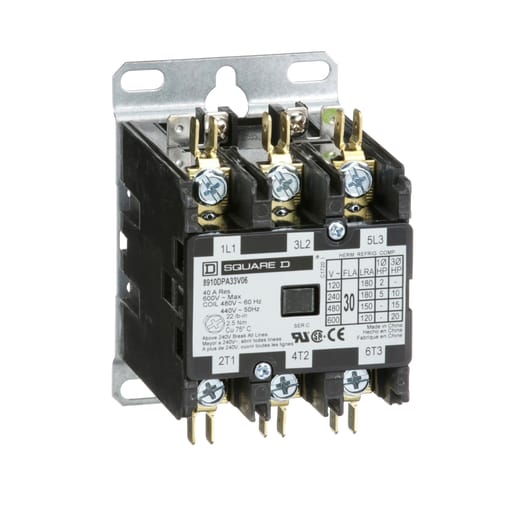

Square-D / Schneider - Square D 8910DPA33V06 440/480 VAC 30 Amp 3-Pole 3NO NEMA 1 Non-Reversing Definite Purpose Contactor

Essential specifications

12-Digit UPC - 785901849841
Amperage - 30 Amp
Applications - IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT.
Catalog Number - 8910DPA33V06
Coil Voltage - 440 V AC 50 HZ-480 V AC 60 HZ,600 V AC

Packaging

1 ea

EAN

00785901849841

Part #

165514

Catalog #

8910DPA33V06

Commercial reference

8910DPA33V06

12-Digit UPC:

785901849841

Amperage:

30 Amp

Applications:

IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT.

Catalog Number:

8910DPA33V06

Coil Voltage:

440 V AC 50 HZ-480 V AC 60 HZ,600 V AC

Country of Origin:

China

ERP_productname:

SQD 8910DPA33V06 480V CONTACTOR

Family Brand Name:

Square D

Number of Phases:

3 Phase

Number of Poles:

3 Pole

Size:

Sub Brand:

DPA

Tc Connection:

Binder head;Quick connect terminals

Type:

Definite Purpose Contactor

Voltage:

600 Volt

SoneparProductId:

SKU_US_70006761

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 30 ampere and a resistive rating of 40 amperes. It also has a 2 HP at 115 VAC single phase, 5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 15 HP at 460 VAC three phase and 20 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 440/480 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified. Compatible Products: 9999D10; 9999D01; 9999D11; 9999D20; 9999DMB1; 9991DPG1
