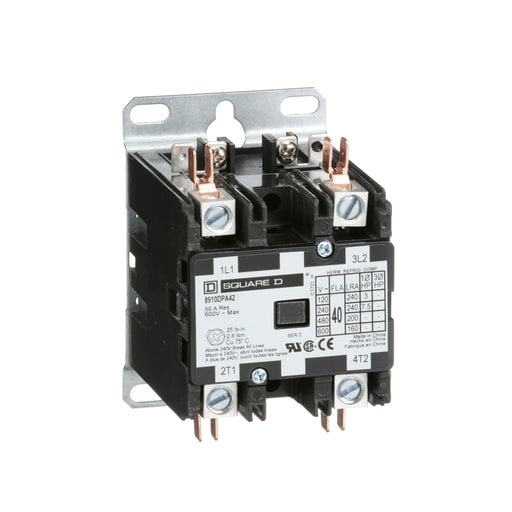

Square-D / Schneider - Square D 8910DPA42V06 440/480 VAC 40 Amp 2-Pole 2NO NEMA 1 Non-Reversing Definite Purpose Contactor

Essential specifications

12-Digit UPC - 785901745600
Amperage - 40 Amp
Applications - IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT.
Catalog Number - 8910DPA42V06
Coil Voltage - 440 to 480@50/60Hz V

Packaging

1 ea

EAN

00785901745600

Part #

240195

Catalog #

8910DPA42V06

Commercial reference

8910DPA42V06

12-Digit UPC:

785901745600

Amperage:

40 Amp

Applications:

IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT.

Catalog Number:

8910DPA42V06

Coil Voltage:

440 to 480@50/60Hz V

Country of Origin:

China

ERP_productname:

SQD 8910DPA42V06 CONTACTOR, DEFINITE PURPOSE, 40A, 2 POLE, 7.5 HP AT 230 VAC, 1 PHASE, 440/480 VAC 50/60 HZ COIL, OPEN

Family Brand Name:

Square D

Number of Phases:

1 Phase

Number of Poles:

2 Pole

Size:

Sub Brand:

DPA

Tc Connection:

Box lugs;Quick connect terminals

Type:

Definite Purpose Contactor

Voltage:

600 Volt

SoneparProductId:

SKU_US_26863131

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This two pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes. It also has a 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 20 HP at 460 VAC three phase and 25 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 440/480 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified.
