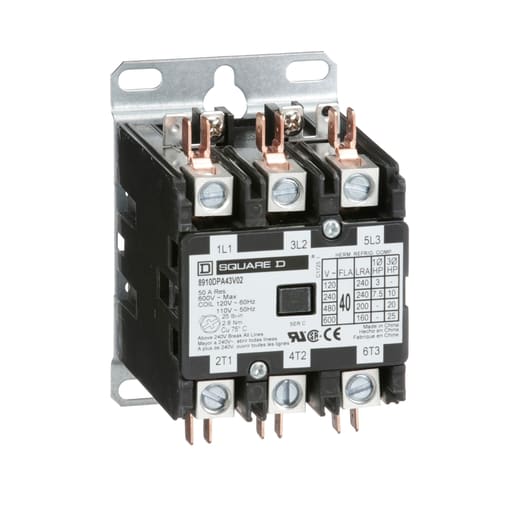

Square-D / Schneider - Square D 8910DPA43V02 600 VAC 40 Amp DPA Contactor Plus Options

Essential specifications

12-Digit UPC - 785901073444
Amperage - 40 Amp
Applications - IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT.
Catalog Number - 8910-DPA43V02
Coil Voltage - 120 V AC 60 HZ-110 V AC 50 HZ,600 V AC

Packaging

1 ea

EAN

00785901073444

Part #

165886

Catalog #

8910DPA43V02

Commercial reference

8910DPA43V02

12-Digit UPC:

785901073444

Amperage:

40 Amp

Applications:

IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT.

Catalog Number:

8910-DPA43V02

Coil Voltage:

120 V AC 60 HZ-110 V AC 50 HZ,600 V AC

Country of Origin:

Mexico

Depths:

2.9 Inch

ERP_productname:

SQD 8910DPA43V02 120V CONTACTOR

Family Brand Name:

Square D

Heights:

2.31 Inch

Number of Phases:

3 Phase

Number of Poles:

3 Pole

Size:

2.90 in

Sub Brand:

DPA

Tc Connection:

Quick connect terminals;Box lugs

Type:

Definite Purpose Contactor

Voltage:

600 Volt

Widths:

2.37 in

SoneparProductId:

SKU_US_69892991

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 40 ampere and a resistive rating of 50 amperes. It also has a 3 HP at 115 VAC single phase, 7.5 HP at 230 VAC single phase and 10 HP at 230 VAC three phase, 20 HP at 460 VAC three phase and 25 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 3.75 inches by 2.37 inches and 3.00 tall. These contactors are UL component recognized and CSA certified. Compatible Products: 9999D10; 9999D01; 9999D11; 9999D20; 9999DMB1; 9991DPG1
