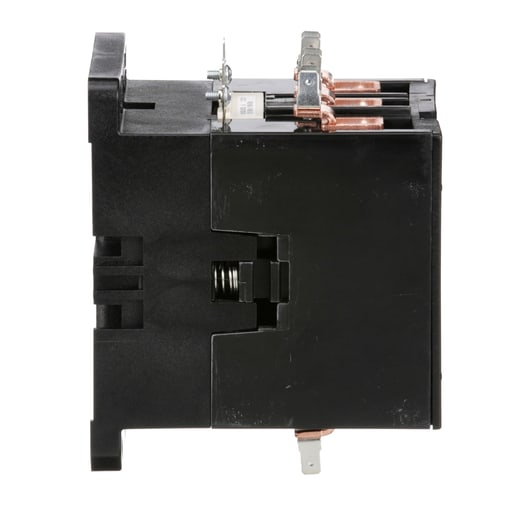

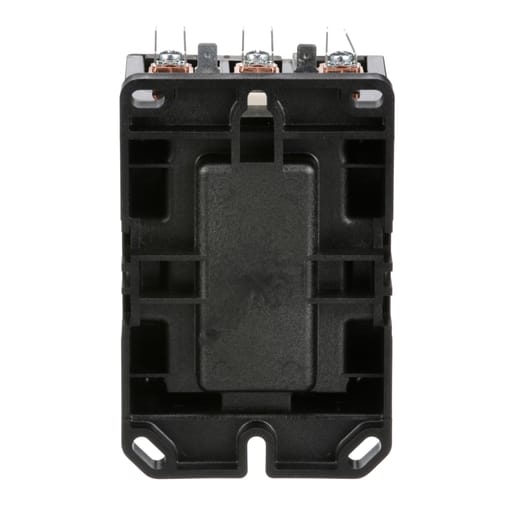

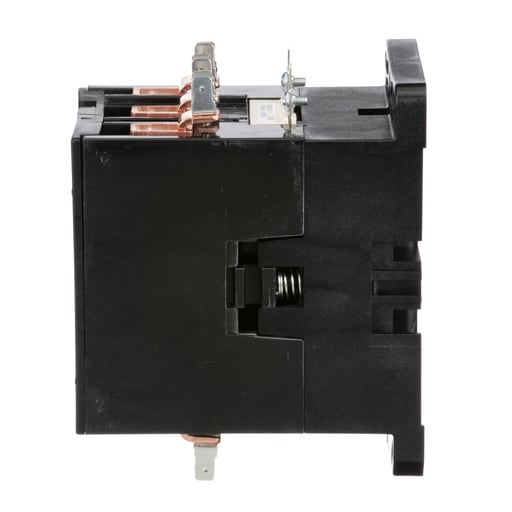

Square-D / Schneider - Square D 8910DPA93V06 440/480 VAC 90 Amp 3-Pole 3NO NEMA 1 Non-Reversing Definite Purpose Contactor

Essential specifications

12-Digit UPC - 785901024576
Amperage - 90 Amp
Applications - IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT.
Catalog Number - 8910DPA93V06
Coil Voltage - 440 V AC 50 HZ-480 V AC 60 HZ,600 V AC

Packaging

1 ea

EAN

00785901024576

Part #

166409

Catalog #

8910DPA93V06

Commercial reference

8910DPA93V06

12-Digit UPC:

785901024576

Amperage:

90 Amp

Applications:

IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT.

Catalog Number:

8910DPA93V06

Coil Voltage:

440 V AC 50 HZ-480 V AC 60 HZ,600 V AC

Country of Origin:

USA

Depths:

121 mm

ERP_productname:

SQD 8910DPA93V06 480V CONTACTOR

Family Brand Name:

Square D

Heights:

134 mm

Number of Phases:

3 Phase

Number of Poles:

3 Pole

Size:

Sub Brand:

DPA

Tc Connection:

Quick connect terminals;Box lugs

Type:

Definite Purpose Contactor

Voltage:

600 Volt

Widths:

86 mm

SoneparProductId:

SKU_US_26924473

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 90 ampere and a resistive rating of 120 amperes. It also has a 7.5 HP at 115 VAC single phase, 20 HP at 230 VAC single phase and 30 HP at 230 VAC three phase, 50 HP at 460 VAC three phase and 50 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 440/480 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 5.20 inches by 3.39 inches and 4.76 tall. These contactors are UL component recognized and CSA certified. Compatible Products: 9999D10; 9999D01; 9999D11; 9999D20
