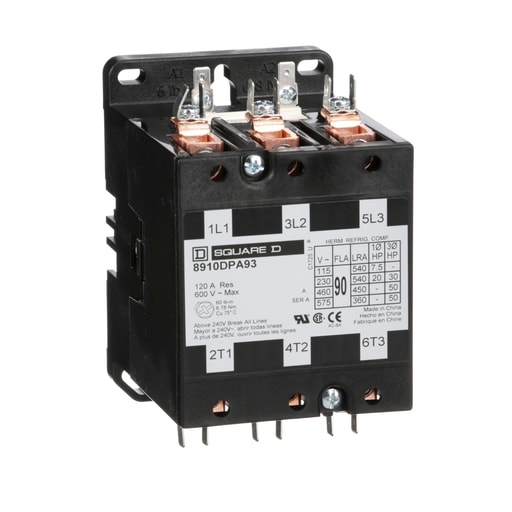

Square-D / Schneider - Square D 8910DPA93V14 24 VAC 90 Amp 3-Pole 3NO NEMA 1 Non-Reversing Definite Purpose Contactor

Essential specifications

12-Digit UPC - 785901024583
Amperage - 90 Amp
Applications - IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT.
Catalog Number - 8910DPA93V14
Coil Voltage - 24 V AC 50/60 HZ,600 V AC

Packaging

1 ea

EAN

00785901024583

Part #

182520

Catalog #

8910DPA93V14

Commercial reference

8910DPA93V14

12-Digit UPC:

785901024583

Amperage:

90 Amp

Applications:

IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT.

Catalog Number:

8910DPA93V14

Coil Voltage:

24 V AC 50/60 HZ,600 V AC

Country of Origin:

China

ERP_productname:

SQD 8910DPA93V14 CONTACTOR 600VAC 90AMP DPA +OPTIONS

Family Brand Name:

Square D

Number of Phases:

3 Phase

Number of Poles:

3 Pole

Size:

Sub Brand:

DPA

Tc Connection:

BOX LUGS-QUICK CONNECT TERMINALS

Type:

DEFINITE PURPOSE CONTACTOR

Voltage:

600 Volt

SoneparProductId:

SKU_US_26924514

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 90 ampere and a resistive rating of 120 amperes. It also has a 7.5 HP at 115 VAC single phase, 20 HP at 230 VAC single phase and 30 HP at 230 VAC three phase, 50 HP at 460 VAC three phase and 50 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 24 VAC 50/60 Hz coil. The contactor has straight through wiring. Contactor is 5.20 inches by 3.39 inches and 4.76 tall. These contactors are UL component recognized and CSA certified. Compatible Products: 9999D10; 9999D01; 9999D11; 9999D20
