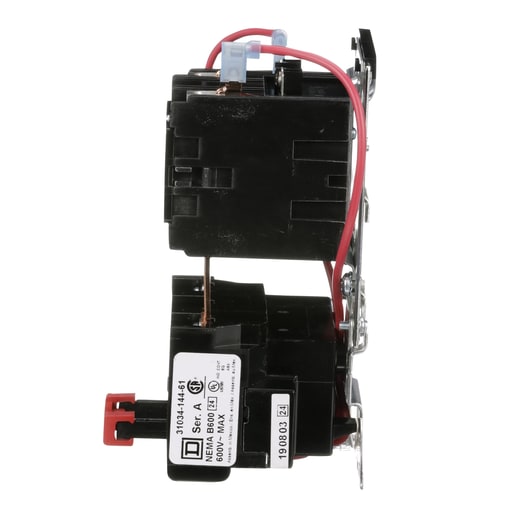

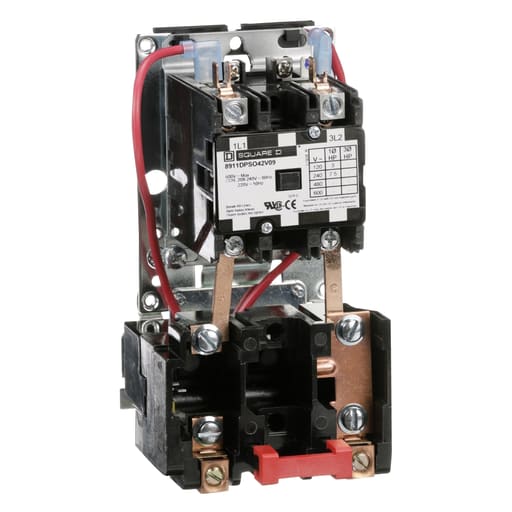

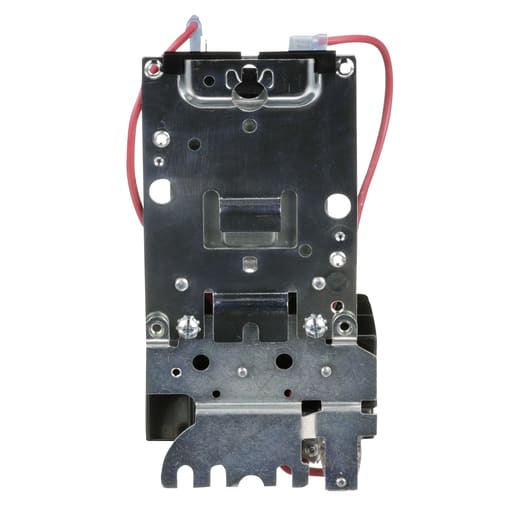

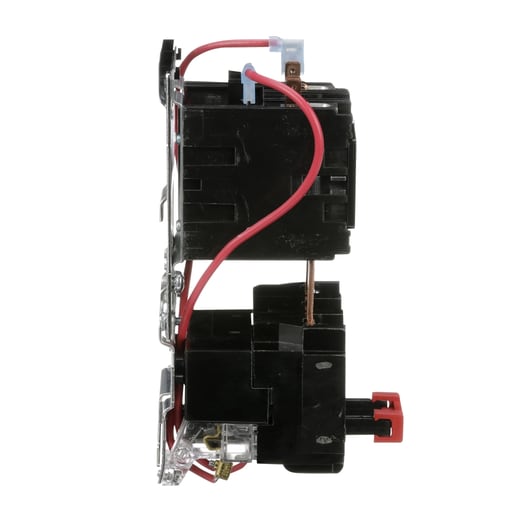

Square-D / Schneider - Square D 8911DPSO42V09 220/208 to 240 VAC 40 Amp 7.5 Hp 1-Phase 2-Pole Open Type Magnetic Definite Purpose Starter

8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This two pole definite purpose starter has a full load rating of 40 amperes. This starter has ratings of 3 HP at 115 VAC and 7.5 HP at 230 VAC single phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz 220 VAC 50 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. This starter doesn't have an enclosure. Enclosures are available. Starter is 7.0 inches tall, 3.5 inches wide and 4.0 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized. Compatible Products: 9999SO4; 9998SO31; B1.30; B1.45; B1.67; B1.88; B2.10; B2.40; B2.65; B3.00; B3.30; B3.70; B4.15; B4.85; B5.50; B6.25; B6.90; B7.70; B8.20; B9.10; B10.2; B11.5; B12.8; B14.0; B15.5; B17.5; B19.5; B22.0; B25.0; B28.0; B32.0; B36.0; B40.0; B45.0; B50.0; B56.0
