Square-D / Schneider - Square D 9001K1L1RH5 30 mm 10 Amp 600 VAC Push Button
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901027034
Actuator - RED FLUSH,SPRING RETURN
Amperage - 10 Amp, AC-15-10 Amp, DC-13
Catalog Number - 9001K1L1RH5
Color - Red
Packaging
1 ea
EAN
00785901027034
Part #
160140
Catalog #
9001K1L1RH5
Commercial reference
9001K1L1RH5
12-Digit UPC:
785901027034
Actuator:
RED FLUSH,SPRING RETURN
Amperage:
10 Amp, AC-15-10 Amp, DC-13
Catalog Number:
9001K1L1RH5
Color:
Red
Country of Origin:
Mexico
ERP_productname:
SQD 9001K1L1RH5 PUSH BUTTON 600VAC 10A 30MM T-K
Enclosure:
NEMA 1/2/3/3R/4/6/12/13
Family Brand Name:
Square D
Size:
1.18 in
Sub Brand:
K
Tc Connection:
SCREW CLAMP TERMINALS
Type:
Illuminated push-button
Voltage:
110...120 Volt AC
SoneparProductId:
SKU_US_26369601

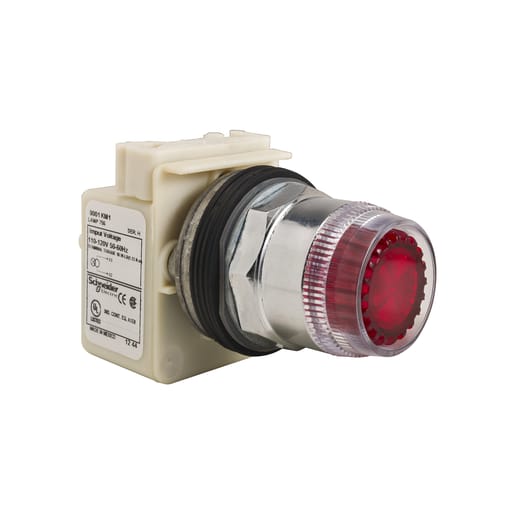

This Harmony 9001K, modular illuminated flush red push button is supplied with a full guard. It has a chromium-plated metal bezel and is supplied with a 110V AC transformer. This illuminated push button with transformer and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.
