Square-D / Schneider - Square D 9001K1L35L 30 mm Blue Body Metal Bezel Momentary Full Guarded Round Illuminated Push Button Operator
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901318118
Actuator - BLUE FLUSH,SPRING RETURN
Catalog Number - 9001K1L35L
Color - Blue
Country of Origin - Mexico
Packaging
1 ea
EAN
00785901318118
Part #
152436
Catalog #
9001K1L35L
Commercial reference
9001K1L35L
12-Digit UPC:
785901318118
Actuator:
BLUE FLUSH,SPRING RETURN
Catalog Number:
9001K1L35L
Color:
Blue
Country of Origin:
Mexico
ERP_productname:
SQD 9001K1L35L PUSHBUTTON OPERATOR 30MM TYPE K +OPTIONS
Enclosure:
NEMA 1/2/3/3R/4/6/12/13
Family Brand Name:
Square D
Size:
30 MM
Sub Brand:
9001K
Type:
HEAD FOR SPRING RETURN PUSH-BUTTON
Voltage:
600 Volt
SoneparProductId:
SKU_US_26485669

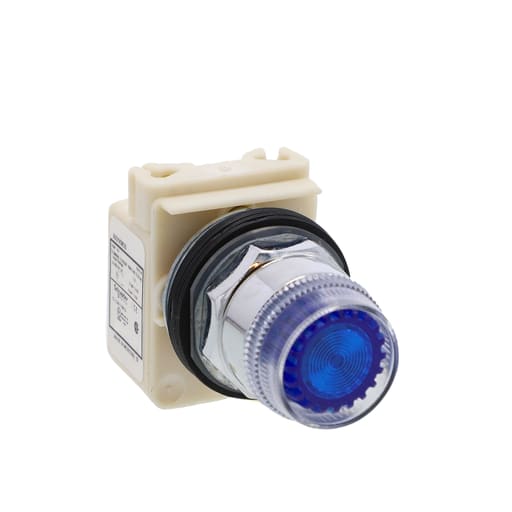

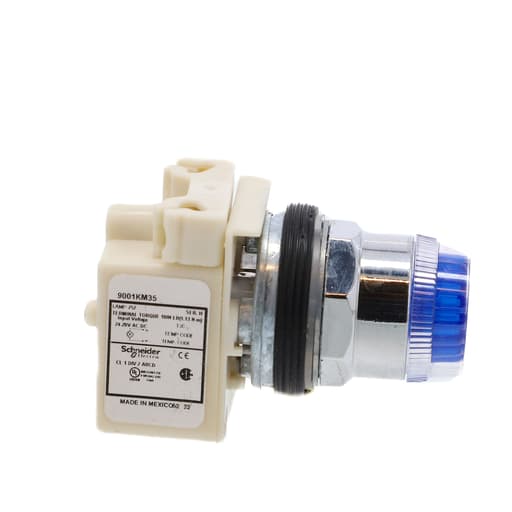

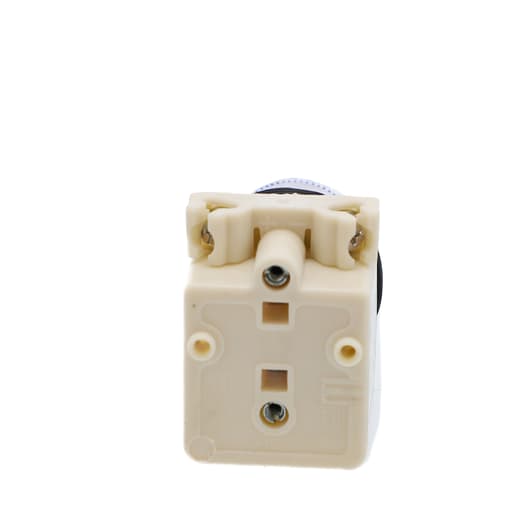

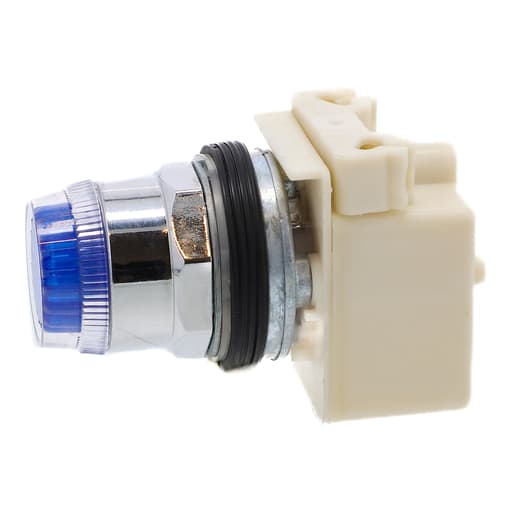

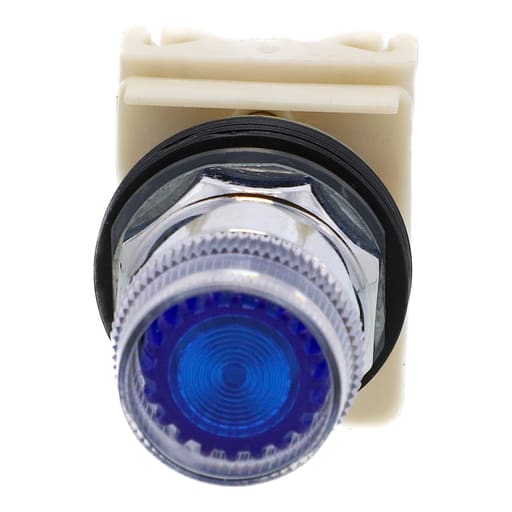

This Harmony 9001K, modular illuminated flush blue push button is supplied with a full guard. It has a chromium-plated metal bezel and is supplied with a 24V AC/DC integral LED. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. Compatible Products: 9001KA1; 9001KA2; 9001KA3; 9001KA5
