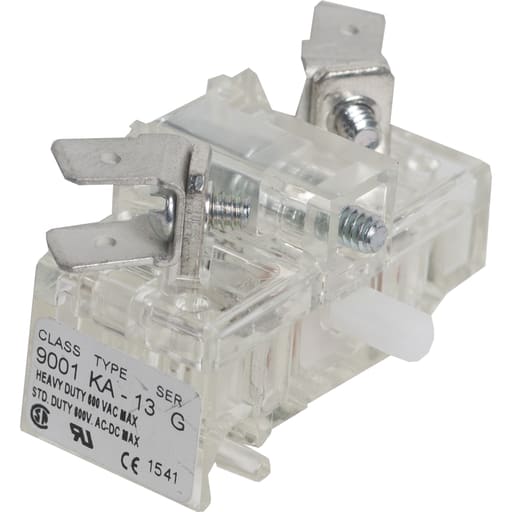

Square-D / Schneider - Square D 9001KA13 600 VAC 10 Amp 1NC Silver Alloy Quick Connect Terminal Push Button Contact Block

CopyCopy
Square-D / Schneider - Square D 9001KA13 600 VAC 10 Amp 1NC Silver Alloy Quick Connect Terminal Push Button Contact Block

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901732426

  • Amperage - 3 Amp 240 V, AC-15, A600-Q600 NEMA-0.55 Amp 125 V, DC-13, A600-Q600 NEMA

  • Catalog Number - 9001KA13

  • Country of Origin - Mexico

  • ERP_productname - SQD 9001KA13 NC CONTACT BLOCK

Packaging

  • 1 ea

EAN

00785901732426

Part #

170891

Catalog #

9001KA13

Commercial reference

9001KA13

12-Digit UPC:

785901732426

Amperage:

3 Amp 240 V, AC-15, A600-Q600 NEMA-0.55 Amp 125 V, DC-13, A600-Q600 NEMA

Catalog Number:

9001KA13

Country of Origin:

Mexico

ERP_productname:

SQD 9001KA13 NC CONTACT BLOCK

Family Brand Name:

Square D

Sub Brand:

9001K

Tc Connection:

QUICK-CONNECT TERMINAL STRIPS

Type:

Contact block with protected terminals

Voltage:

600 Volt

SoneparProductId:

SKU_US_25483500

The 9001K, 9001SK and 9001KX push button lines have a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. This contact blocks will work on 9001K, 9001SK and 9001KX operators. Contact block has one normally closed contact. Contact block has quick connect terminals. Contact block is UL Listed and CSA certified. "The contacts are made of silver alloy." "It is ideal for petrochemical, metallurgy, mining, oil and gas applications. It is also suitable for automotive, water and wastewater treatment applications." "This product is certified by NEMA and UL 508. It meets EN/IEC 60947-5-4, JIS C 852, EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-1 and JIS C 4520 standards." "A comprehensive range of illuminated pushbuttons, pilot lights, emergency stop buttons, selector switches, joystick controllers and accessories to fit your needs." "The modular range of . 30mm metal control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
