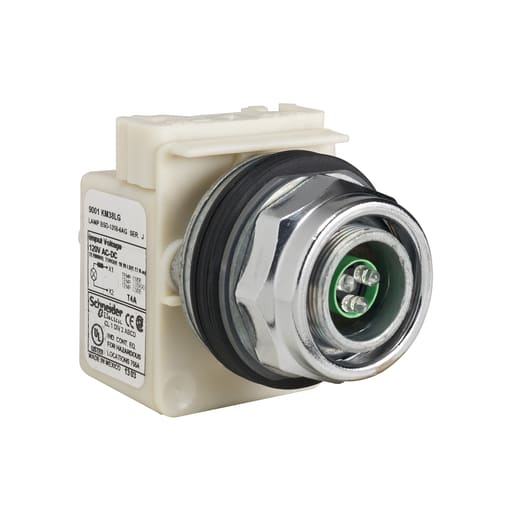

Square-D / Schneider - Square D 9001KP38LG 30 mm 120 VAC/VDC Green Lens Metal Bezel LED Standard Pilot Light
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901033011
Applications - SIGNALLING
Catalog Number - 9001KP38LG
Country of Origin - Mexico
ERP_productname - SQD 9001KP38LG PILOT LIGHT 120V 30MM TYPE K +OPTIONS
Packaging
1 ea
EAN
00785901033011
Part #
154728
Catalog #
9001KP38LG
Commercial reference
9001KP38LG
12-Digit UPC:
785901033011
Applications:
SIGNALLING
Catalog Number:
9001KP38LG
Country of Origin:
Mexico
ERP_productname:
SQD 9001KP38LG PILOT LIGHT 120V 30MM TYPE K +OPTIONS
Family Brand Name:
Square D
Finish:
Chromium
Fixture Type:
GREEN LED
Shape:
ROUND
Size:
1.18 in
Sub Brand:
K
Type:
Pilot light
SoneparProductId:
SKU_US_26368894
This single component pilot light provides clear visual feedback on the status of your machines It is clearly distinguishable visually at a distance due to clear colors and illumination via integral green LED, enabling complex machine statuses to be read at a glance It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections It weights 0.21 kg High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13)
