Square-D / Schneider - Square D 9001KR3UH13 30 mm 10 Amp 600 Volt Push Button

CopyCopy
Square-D / Schneider - Square D 9001KR3UH13 30 mm 10 Amp 600 Volt Push Button

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901856474

  • Actuator - STANDARD PUSHBUTTON

  • Amperage - 10 Amp

  • Catalog Number - 9001KR3UH13

  • Country of Origin - Mexico

Packaging

  • 1 ea

EAN

00785901856474

Part #

222898

Catalog #

9001KR3UH13

Commercial reference

9001KR3UH13

12-Digit UPC:

785901856474

Actuator:

STANDARD PUSHBUTTON

Amperage:

10 Amp

Catalog Number:

9001KR3UH13

Country of Origin:

Mexico

ERP_productname:

SQD 9001KR3UH13 PUSH BUTTON 600VAC 10A 30MM T-K

Enclosure:

NEMA 1/2/3/3R/4/6/12/13

Family Brand Name:

Schneider Electric

Heights:

45 mm

Size:

30 mm

Sub Brand:

9001K

Tc Connection:

SCREW CLAMP

Type:

Push-button

Voltage:

600 Volt

Widths:

48 mm

SoneparProductId:

SKU_US_26466431

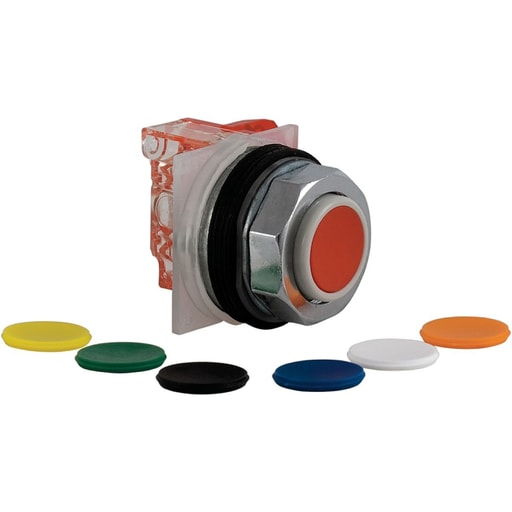

This Schneider Electric Harmony 9001K modular projecting push-button with set of 7 color caps has 2 positions, operates with spring return mechanism. It has 1 x NO + 1 x NC contact and fits in a 30mm hole. It is supplied with contact block and uses screw-clamp terminals. It has a chromium-plated metal bezel. This projecting push-button with set of 7 color caps provides an ergonomic interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Metal bezel. Ideal for severe environments, especially applications requiring high impact and vibration resistance. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. Designed to fit in a standard 30mm cutout, ensuring compatibility when installing in pre-existing machinery. Simple spring return mechanism is rugged and durable, high lifetime, less maintenance and replacement. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. High performance, International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13). Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 9001KN201; 9001KN202 - Cross Sell Products: 9001KY1 - Spare Part Products: 9001T8U; 9001KR3; 9001KA3
