Square-D / Schneider - Square D 9001KR9P35LRRH13 30 mm 10 Amp 600 Volt Push Button

CopyCopy

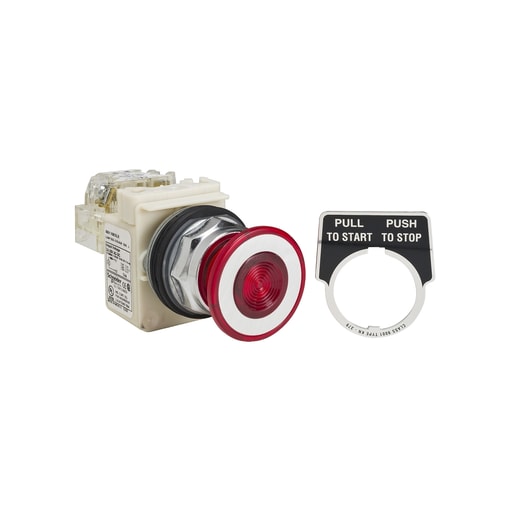

Square-D / Schneider - Square D 9001KR9P35LRRH13 30 mm 10 Amp 600 Volt Push Button

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901034247

  • Actuator - SCREW-ON PLASTIC MUSHROOM (41MM)

  • Amperage - 10 Amp, AC-15-10 Amp, DC-13

  • Applications - ILLUMINATED PUSH-BUTTON

  • Catalog Number - 9001KR9P35LRRH13

Packaging

  • 1 ea

EAN

00785901034247

Part #

164126

Catalog #

9001KR9P35LRRH13

Commercial reference

9001KR9P35LRRH13

12-Digit UPC:

785901034247

Actuator:

SCREW-ON PLASTIC MUSHROOM (41MM)

Amperage:

10 Amp, AC-15-10 Amp, DC-13

Applications:

ILLUMINATED PUSH-BUTTON

Catalog Number:

9001KR9P35LRRH13

Color:

Red

Country of Origin:

USA

ERP_productname:

SQD 9001KR9P35LRRH13 PUSH BUTTON 600VAC 10A 30MM T-K

Enclosure:

NEMA 1/2/3/3R/4/6/12/13

Family Brand Name:

Schneider Electric

Size:

30 mm

Sub Brand:

K

Tc Connection:

SCREW CLAMP

Type:

Push-button

Voltage:

600 Volt

SoneparProductId:

SKU_US_26370481

This circular shape push-button is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance thanks to its clear colors It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and easily connected with control circuits It weights 0.19 kg High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 6, 12 and 13) Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 9001KN201; 9001KN202 - Cross Sell Products: 9001KY1 - Spare Part Products: 9001KM35LR; 9001R22; 9001KR9; 9001KA1
