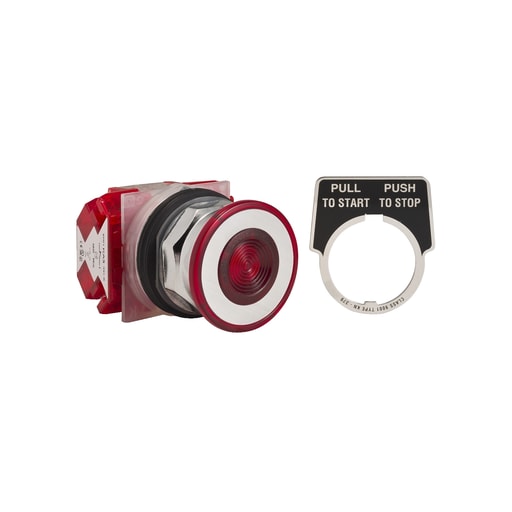

Square-D / Schneider - Square D 9001KR9RH8 30 mm 10 Amp 600 Volt Push Button

CopyCopy
Square-D / Schneider - Square D 9001KR9RH8 30 mm 10 Amp 600 Volt Push Button

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901034407

  • Actuator - SCREW-ON PLASTIC MUSHROOM (41MM)

  • Amperage - 10 Amp, AC-15-10 Amp, DC-13

  • Catalog Number - 9001KR9RH8

  • Color - Red

Packaging

  • 1 ea

EAN

00785901034407

Part #

149502

Catalog #

9001KR9RH8

Commercial reference

9001KR9RH8

12-Digit UPC:

785901034407

Actuator:

SCREW-ON PLASTIC MUSHROOM (41MM)

Amperage:

10 Amp, AC-15-10 Amp, DC-13

Catalog Number:

9001KR9RH8

Color:

Red

Country of Origin:

Mexico

ERP_productname:

SQD 9001KR9RH8 PUSH BUTTON 600VAC 10A 30MM T-K

Enclosure:

NEMA 1/2/3/3R/4/6/12/13

Family Brand Name:

Schneider Electric

Size:

30 mm

Sub Brand:

K

Tc Connection:

SCREW CLAMP

Type:

Push-button

Voltage:

600 Volt

SoneparProductId:

SKU_US_26860959

This mushroom shaped push-button is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance thanks to its prominent mushroom shape It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 6, 12 and 13) Prop 65: WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 9001KN201; 9001KN202 - Cross Sell Products: 9001KY1 - Spare Part Products: 9001R22; 9001KR9; 9001KA1
