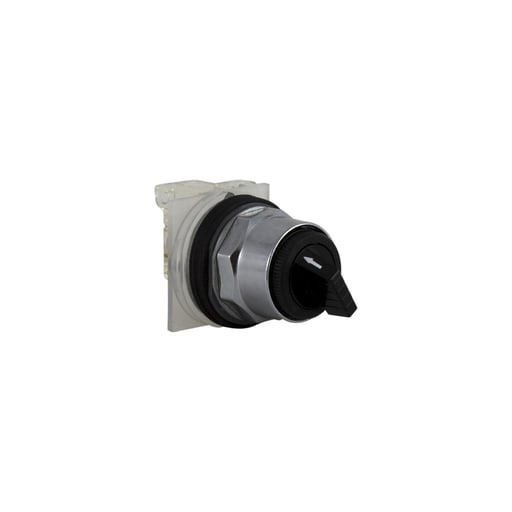

Square-D / Schneider - Square D 9001KS11BH1 30 mm 10 Amp 600 VAC/VDC 1NO 1NC 2-Position Round Knob Non-Illuminated Selector Switch

CopyCopy
Square-D / Schneider - Square D 9001KS11BH1 30 mm 10 Amp 600 VAC/VDC 1NO 1NC 2-Position Round Knob Non-Illuminated Selector Switch

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901384380

  • Actuator - 2 positions

  • Amperage - 10 Amp

  • Applications - NON ILLUMINATED PUSH-BUTTON

  • Catalog Number - 9001KS11BH1

Packaging

  • 1 ea

EAN

00785901384380

Part #

178511

Catalog #

9001KS11BH1

Commercial reference

9001KS11BH1

12-Digit UPC:

785901384380

Actuator:

2 positions

Amperage:

10 Amp

Applications:

NON ILLUMINATED PUSH-BUTTON

Catalog Number:

9001KS11BH1

Color:

Black

Country of Origin:

Mexico

ERP_productname:

SQD 9001KS11BH1 SW&CONTACT BLOCK

Enclosure:

NEMA 1/2/3/3R/4/6/12/13

Family Brand Name:

Schneider Electric

Size:

30 mm

Sub Brand:

K

Tc Connection:

SCREW-CLAMP TERMINALS, 1 X 0.22...2 X 1.5 MMA. IEC 60947-1

Type:

Selector switch

Voltage:

600 Volt

SoneparProductId:

SKU_US_26413863

This selector switch is part of the range of control and signaling units, Harmony 9001K diameter 30mm metal. It has a chromium-plated metal bezel. It is supplied with black standard handle knob. It is easily installed into a standard 30mm diameter panel cut-outs. It features 2 positions maintained operator and uses screw clamp terminals. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant. Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: 9001KN201; 9001KN202 - Cross Sell Products: 9001KY1 - Spare Part Products: 9001B11; 9001KS46; 9001KA1
