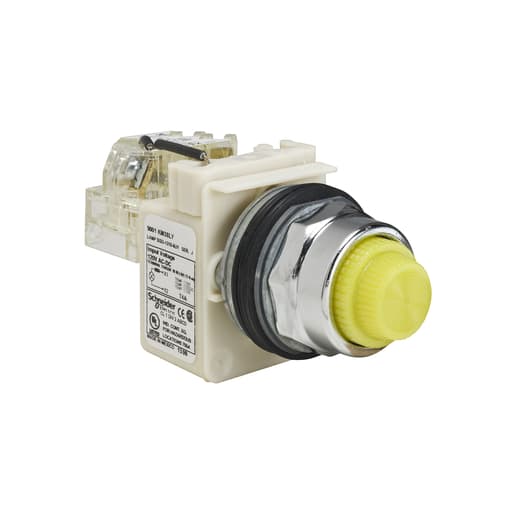

Square-D / Schneider - Square D 9001KT38LYY31 30 mm 120 VAC Yellow Lens Metal Bezel LED Push to Test Round Pilot Light

CopyCopy
Square-D / Schneider - Square D 9001KT38LYY31 30 mm 120 VAC Yellow Lens Metal Bezel LED Push to Test Round Pilot Light

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901036210

  • Applications - SIGNALLING

  • Catalog Number - 9001KT38LYY31

  • Color - Yellow

  • Country of Origin - Mexico

Packaging

  • 1 ea

EAN

00785901036210

Part #

123914

Catalog #

9001KT38LYY31

Commercial reference

9001KT38LYY31

12-Digit UPC:

785901036210

Applications:

SIGNALLING

Catalog Number:

9001KT38LYY31

Color:

Yellow

Country of Origin:

Mexico

ERP_productname:

SQD 9001KT38LYY31 30MM PUSH BUTTON, TYPE K, PUSH TO TEST PILOT LIGHT, YELLOW LED LIGHT MODULE, 120VAC/VDC, YELLOW FRESNEL LENS, NEMA 4, 13

Family Brand Name:

Square D

Finish:

Chromium

Fixture Type:

YELLOW LED

Shape:

Fresnel

Size:

1.18 in

Sub Brand:

K

Type:

Pilot light

SoneparProductId:

SKU_US_26370294

The 9001K push button line has a large variety of operators and accessories for heavy industry applications. These operators are used in the petrochemical, metallurgy, mining, oil and gas, wastewater treatment and automotive manufacturing industries and more. Type K operators have a die cast operator that mounts in a 1.18 inch round hole. This push-to-test pilot light has a die cast ring nut. By pushing on the pilot light lens, you can determine if the pilot light lamp is still working. This push-to-test pilot light has a 120 VAC/VDC yellow LED light module to provide the illumination. The light module has a yellow LED lamp. This operator has one 9001KA1 contact block mounted on the back. The contact block has one normally open and one normally closed contact. Contact block has a UL Type A600, UL Type Q600 and a 10A resistive VAC rating. The contacts in this contact block are double break direct acting. Contact block and light module will accept up to two 12AWG to 24 AWG solid or stranded wires. The contact block and light module terminals are protected to meeting VDE 0106 Part 100. This push-to-test pilot light has a yellow plastic fresnel pilot light lens. When properly installed this opertor is UL listed for Types 1, 2, 3, 3R, 4, 6, 12 and 13 environments. This operator is UL Listed and CSA certified. Cross Sell Products: 9001KT1LYA31; 9001KT1R9; 9001KT38LG; 9001KT38LR; 9001KT38LRR6; 9001KT38LY
