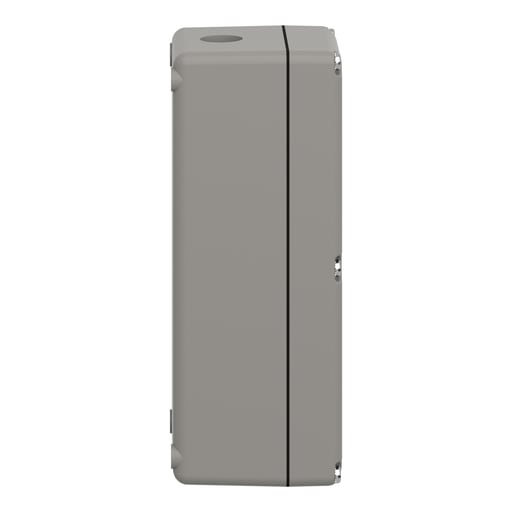

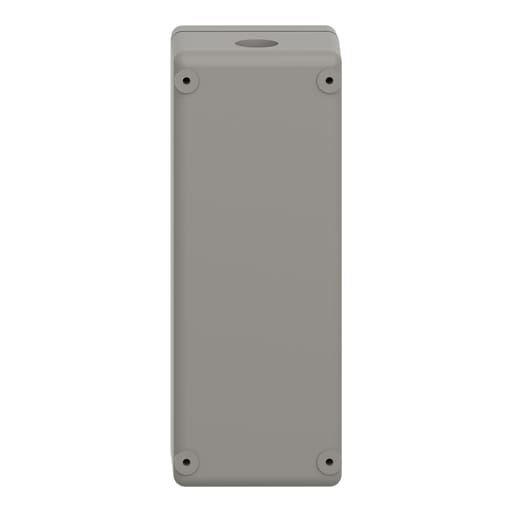

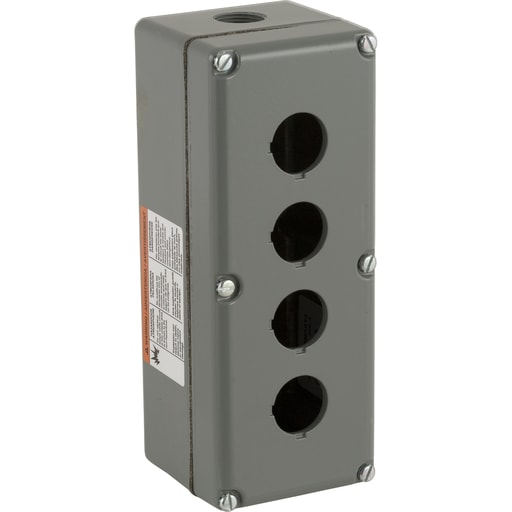

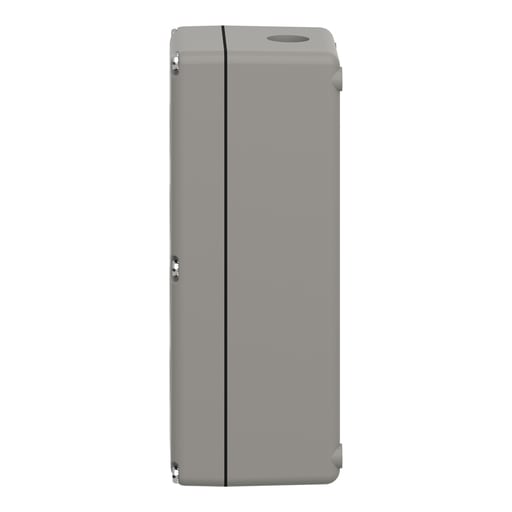

Square-D / Schneider - Square D 9001KY4 3.63 x 9.25 x 3.53 Inch NEMA 1/3/4/13 4-Hole Push Button Control Station Enclosure

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901874515

  • Applications - FOR .. 30 MM CONTROL AND SIGNALLING UNITS

  • Catalog Number - 9001KY4

  • Country of Origin - Mexico

  • ERP_productname - SQD 9001KY4 NEMA-13 CAST ENCL

Packaging

  • 1 ea

EAN

00785901874515

Part #

181797

Catalog #

9001KY4

Commercial reference

9001KY4

12-Digit UPC:

785901874515

Applications:

FOR .. 30 MM CONTROL AND SIGNALLING UNITS

Catalog Number:

9001KY4

Country of Origin:

Mexico

ERP_productname:

SQD 9001KY4 NEMA-13 CAST ENCL

Enclosure:

NEMA 3/4/13

Family Brand Name:

Schneider Electric

Material:

Aluminum

Size:

30MM

Type:

CONTROL STATION ENCLOSURE

SoneparProductId:

SKU_US_25976691

This empty enclosure is a separate component of the range of control and signaling units, Harmony 9001K / 9001SK diameter 30mm. It comprises an aluminium enclosure with 4 vertical opening diameter 30mm. It is supplied with 1 entry tapped for 3/4'' cable gland. It weighs 1.846kg. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant. Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Cross Sell Products: 9001KY1; 9001KY2; 9001KY3; 9001KYSS1; 9001KYSS2; 9001KYSS3
