Square-D / Schneider - Square D 9001KYK117 600 VAC 10 Amp 1NO 1NC NEMA 1/3/4/13 Die-Cast Zinc Push Button Control Station

CopyCopy
Square-D / Schneider - Square D 9001KYK117 600 VAC 10 Amp 1NO 1NC NEMA 1/3/4/13 Die-Cast Zinc Push Button Control Station

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901039846

  • Amperage - 10 Amp

  • Catalog Number - 9001KYK117

  • Country of Origin - Mexico

  • ERP_productname - SQD 9001KYK117 CONTROL STATION + OPERATORS

Packaging

  • 1 ea

EAN

00785901039846

Part #

183231

Catalog #

9001KYK117

Commercial reference

9001KYK117

12-Digit UPC:

785901039846

Amperage:

10 Amp

Catalog Number:

9001KYK117

Country of Origin:

Mexico

ERP_productname:

SQD 9001KYK117 CONTROL STATION + OPERATORS

Enclosure:

SURFACE MOUNTING

Enclosure Material:

Zinc Die Cast

Family Brand Name:

Schneider Electric

Size:

30MM

Sub Brand:

KY;9001KY

Tc Connection:

SCREW-CLAMP TERMINALS

Type:

Complete control station

Voltage:

300 Volt

SoneparProductId:

SKU_US_26370139

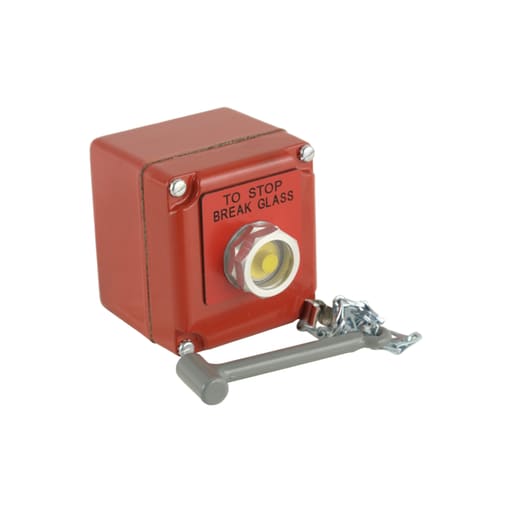

This complete control station with two pushbuttons provides an ergonomic interface for your machines The control station is composed of one push-button 1 NO + 1 NC STOP-BREAK GLASS, and it is connected to control circuits with classic screw-clamp connections It can be used indoor It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments High performance International standards & certifications (Marine ABS certification, Type 3, 4 and 13) Prop 65: WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Cross Sell Products: 9001KYK14; 9001KYK23; 9001KYK25; 9001KYK317
